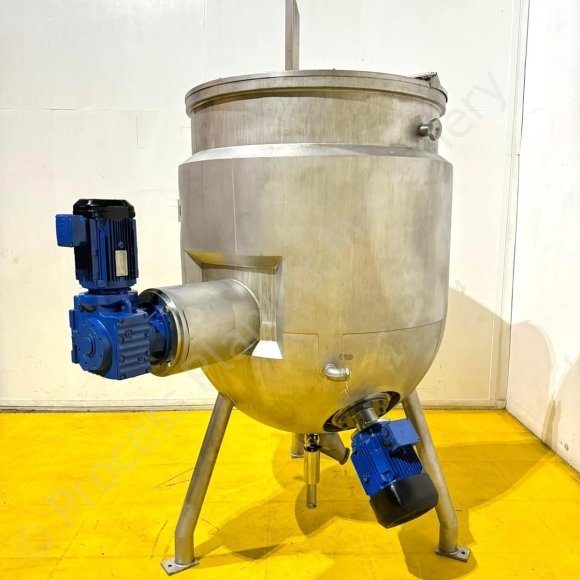

1,000 Ltr Giusti Jacketed Tank with Scraped Surface Over-Mix & Bottom High Shear
This is a Used Approx. 1,000 Ltr Giusti Stainless Steel Jacketed Vacuum Rated Tank with Side-Entry Scraped Surface Over-Mix & Bottom Entry High Shear Mixer, held in stock at Lockerbie, Scotland and Available for Immediate Sale.
Manufacturer: Giusti
Construction: 316 Grade S/S
Internal Volume: Approx. 1,000 Ltr
Shape: Cylindrcial with Dished Bottom
Orientation: Vertical Mixing Tank
Max. Internal Pressure: 1.2 Bar
Min. Internal Pressure: Full Vacuum
Jacket Working Pressure: 5.5 Bar
Jacket Test Pressure: 9.9 Bar
Max. Temperature: 168 degC
Agitation: Side-Entry Scraped Surface Over-Mix & Bottom High Shear
High Shear Mixing Head: Slotted Disintegration Head
Motor Details (Scraper Mixer): 3kw, 14 RPM, 50Hz, 400v
Motor Details (High Shear): 5.5kw, 2900 RPM, 50/60Hz, 400v
Man Access: Top Hinged Lid Assembly with Safety Grid
Supports: 3x Legs
Outlet: 3x Inch Discharge with Flushed Valve
Overall Dimensions (L x W x H): approx. 2m x 1.7m x 2.6m
Availability: Immediate
Condition: Used
Location: Lockerbie, Scotland
1,000 Ltr Giusti Jacketed Tank with Scraped Surface Over-Mix & Bottom High Shear Mixer
This is a Used Approx. 1,000 Ltr Giusti Stainless Steel Jacketed Vacuum Rated Tank with Side-Entry Scraped Surface Over-Mix & Bottom Entry High Shear Mixer, held in stock at Lockerbie, Scotland and Available for Immediate Sale.
