Stock Code: 8169
Quantity available: 1

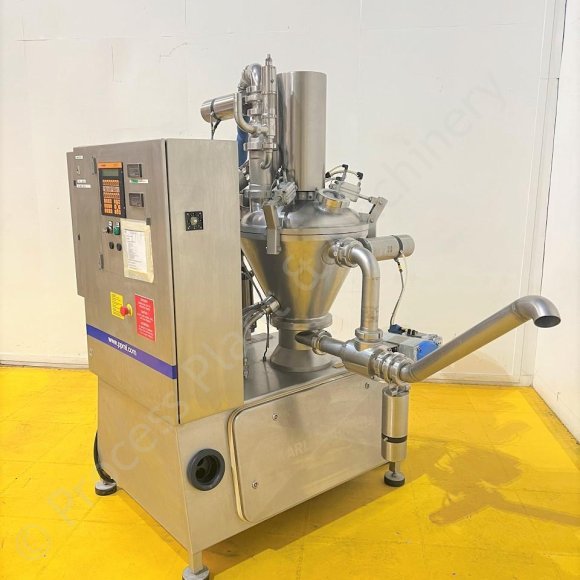

30 Ltr Karl Schnell FV 175 30 Jacketed Vacuum Process Cooker This is a Used Approx. 30 Ltr Karl Schnell FV 175 30 Jacketed Vacuum Process Cooker with Bottom High Shear Cutting Assembly & Direct Steam Injection, currently held in stock at Lockerbie, Scotland...
Complete Enquiry

Manufacturer: Karl Schnell GmbH @ Co.
Machine: FV 175 30
Type: 046
Serial Number: 31411
Internal Volume: Approx. 30 Ltr
Construction: 316 Grade Stainless Steel
Jacket: Double Jacketed Process Cooker
Heating Option: Direct Steam Injection
Agitation:
1) 7.5/10kw 2-Speed Bottom High Shear Cutting Assembly
2) 0.37kw Top Scraped Surface Mixer

Additional Information: Includes Mounted Control Panel with Siemens S5 PLC, Siemens Midimaster Inverter & Lauer Operators Screen
Lid: Hinged Lid with Pneumatic Lift Assembly
Height to Lid: 1280mm
Outlet: 2.5 inch
Height to Outlet (Valve): 780mm
Overall Dimensions (L x W x H): 1300mm x 1400mm x 2000mm
Availability: Immediate
Condition: Used
Location: Lockerbie, Scotland

30 Ltr Karl Schnell FV 175 30 Jacketed Vacuum Process Cooker

This is a Used Approx. 30 Ltr Karl Schnell FV 175 30 Jacketed Vacuum Process Cooker with Bottom High Shear Cutting Assembly & Direct Steam Injection, currently held in stock at Lockerbie, Scotland...
