1,800 to 4,400 kg/hr Tetra Pak Tetra Spiraflo Tubular Pasteuriser Plant
Tetra Spiraflo Shell-in-Tube Pasteuriser:
Manufacturer: Tetra Pak
Type: MT-70
Serial Number: 1033663-01-23
Flow Rate:
approx. 4,400kg/hr on Orange Juice
approx. 1,800kg/hr on Smoothies
Temp Profile:
Orange Juice: 2degC-80degC-4degC
Smoothies: 2degC-80degC-4degC
Year: 2004
No. of Units: 23x
No. of Tubes Per Unit: 7x
Tube Dia: 15mm
Overall Tube Length: approx. 6100mm
Design Pressure (Shell): 0-20 Bar
Design Pressure (Tubes): 0-50 Bar
Design Temp (Shell): 0-160 degC
Design Temp (Tubes): 0-160 degC
Volume (Shell): 287.5 Ltr
Volume (Tubes): 147.2 Ltr
Test Pressure (Shell): 34 Bar
Test Pressure (Tubes): 85 Bar
Port Size: 2 inch
Overall Dimensions (L x W x H): 6300mm x 1000mm x 2060mm
Skid Mounted System Including:
2x Positive Lobe Pumps
4x Centrifugal Pumps
Various GEA Tuchenhagen Valves
Alfa Laval Brazed Heat Exchanger
Balance Tank
E+H Flow Meter
Modulating Valves
ACR Condensate Recovery Unit

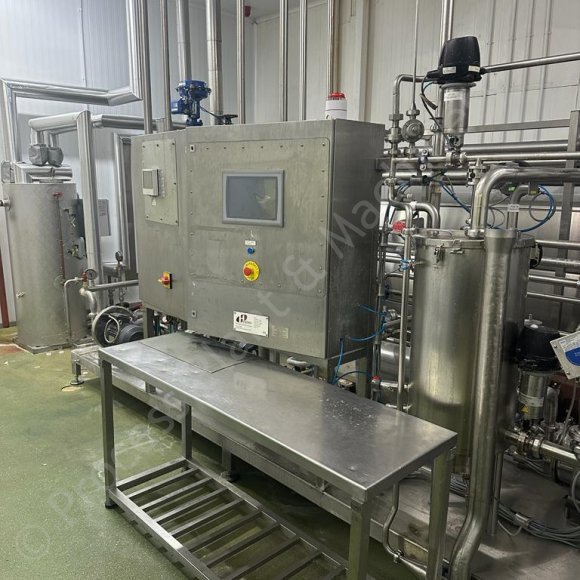

Control Panel with Allen Bradley CompactLogix PLC, PanelView Plus Operators Screen & Mitsubishi Inverter Drives
Overall Dimensions (L x W x H): 4700mm x 1800mm x 2500mm
Availability: Immediate
Condition: Used
Location: Lockerbiie, Scotland
Previous Use: Fruit Smoothies & Juice
1,800 to 4,400 kg/hr Tetra Pak Tetra Spiraflo Tubular Pasteuriser Plant
Approx. 1,800 to 4,000 LPH Tetra Pak Tetra Spiraflo Tubular Pasteuriser Plant, which includes a Tetra Pak MT-70 Shell-in-Tube Tubular Pasteuriser, designed for Orange Juice 12' Bx and Smoothies (Strawberry & Banana), previously used in a Food Production Facility in the UK, now held in stock at Lockerbie, Scotland and available for Immediate Sale.
