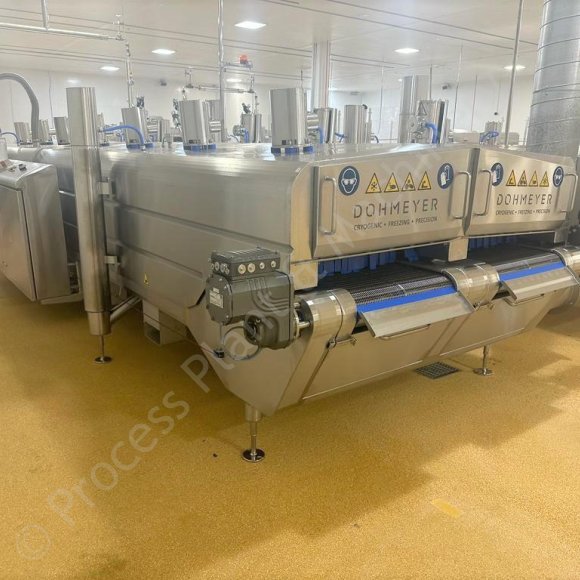

Dohmeyer DOH-TLT-8400x2x28-LIN Cryogenic Freezer Tunnel - Year 2021

Stock Code: 8317
Quantity available: 1
Dohmeyer DOH-TLT-8400x2x28-LIN Cryogenic Freezer Tunnel Dohmeyer DOH-TLT-8400x2x28-LIN Cryogenic Freezer Tunnel (Dual Belt) which use Liquified Nitrogen (LIN) for Continuous Cooling & Freezing of products in various sector s. Manufacturered in Year 2021, with an Overall Freezer Length of 7574mm, previously part of a Food Production Facility in the UK, held in stock at Lockerbie, Scotland and available for Immediate Sale.
Complete Enquiry
SpecificationDescription

Manufacturer: Dohmeyer Construction, Poland
Model: DOH-TLT-8400x2x28"-LIN-2021
Type: Cryogenic Freezer Tunnel
Serial Number: 202 110 063 556
Year: 2021
Belt Type: Dual Belt
Cryogenic Gas/Range: LIN/2...4 bar
Compressed Air/Range: 6...8 bar
Power Input: 3x400VAC+N+PE, 50Hz
Weight: Approx. 6,000kg

Max. Width of Tunnel: approx. 2020mm
Height to Belt: approx. 860mm
Belt Width: approx. 610mm
Overall Dimensions (L x W x H): approx. 8204mm x 2896mm x 2779mm
Controls: Built in Control Panel with Siemens PLC & HMI Operators Screen
Availability: Immediate
Condition: Very Sparingly Used
Location: Lockerbie, Scotland

Dohmeyer DOH-TLT-8400x2x28-LIN Cryogenic Freezer Tunnel

Dohmeyer DOH-TLT-8400x2x28-LIN Cryogenic Freezer Tunnel (Dual Belt) which use Liquified Nitrogen (LIN) for Continuous Cooling & Freezing of products in various sectors. Manufacturered in Year 2021, with an Overall Freezer Length of 7574mm, previously part of a Food Production Facility in the UK, held in stock at Lockerbie, Scotland and available for Immediate Sale.
