Stock Code: 8009
Quantity available: 1

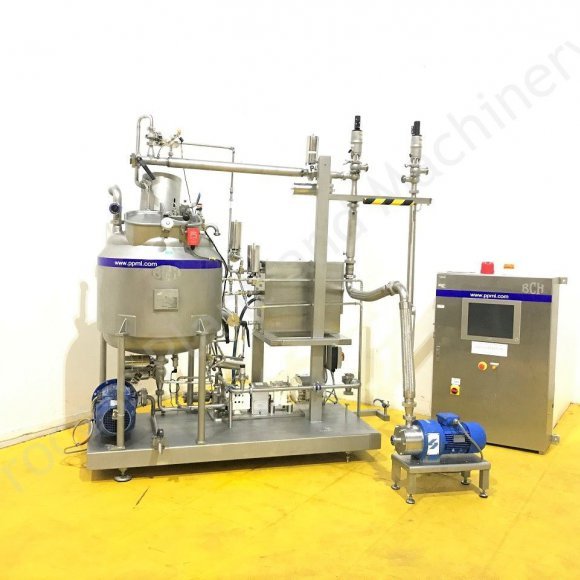

150 Ltr BCH Jacketed Mixing System with Silverson Inline High Shear Mixer This is a Used Approx. 150 Ltr BCH Jacketed Mixing System, previously used as a Syrup & Food Oil Mixing & Preparation System in a High Profile Confectionery Facility in the UK. This Mixing System consists of a 150 Ltr BCH Jacketed Tank with Top-Mounted High Shear Mixer, Silverson Inline High Shear Mixer, Positive Lobe Pump, Centrifugal Pump, Water Temperature Control Unit, Control Panel & Various Valves & Pipework, currently held in stock at Lockerbie, Scotland...
Complete Enquiry

Jacketed Mixing Tank:
Manufacturer: BCH, England
Construction: 316 Grade Stainless Steel
Serial No: 7/16504
Year of Manufacture: 2005
Internal Volume: Approx. 150 Ltr
Jacket Design Pressure: 4.18 Bar
Jacket Test Pressure: 5.9 Bar
Agitation: Top-Mounted High Shear Mixer
Mixing Head Type: General Purpose
Man Access: Top Manway with Oval Lid
Discharge: 2 inch Outlet Port

Inline High Shear Mixer:
Manufacturer: Silverson, England
Size: 1.5 inch Ports
Motor Details: 1.5kw, 400v, 3.1A, 2895 r/min
Mixing Head: Slotted Disintegrating Head

Positive Lobe Pump:
Manufacturer: Waukesha, USA
Model: 0060
Serial No: 05E2699
Size: 1 inch Ports
Motor Details: 1.1kw

Water Temperature Control Unit:
Manufacturer: Regloplas, Switzerland
Type: 90S/7.2/TP20/1K/RT50
Serial No: 101004260001
Year of Manufacture: 2006
Power: 8.5kw
Electrical: 400v, 50Hz, 13a
Volume: 6 Ltr
Temperature: 90 deg C

Additional Information:
Includes Control Panel with Allen Bradley PLC & Pro-Face Operators HDMI Display, Lowara Centrifugal Pump, Various Actuated Valves, Pipework, Instruction Manuals & Drawings

Overall Dimensions (L x W x H):
2100mm x 800mm x 2200mm
Control Panel (W x H): 800mm x 1200mm

Availability: Immediate
Condition: Used
Previous Use: Syrup & Oil Mixing
Location: Lockerbie, Scotland
