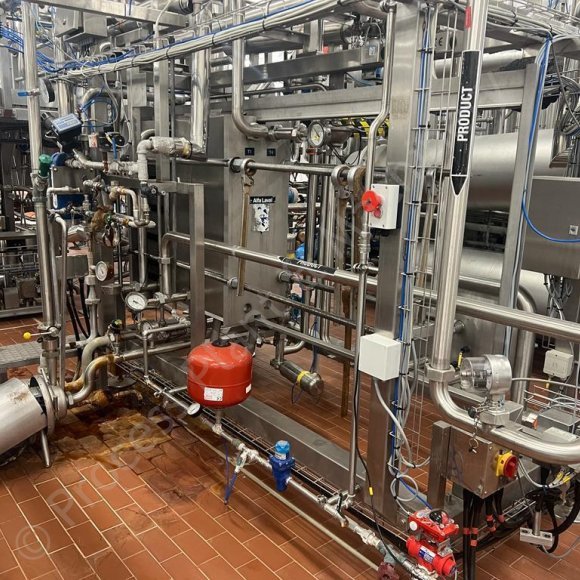

1,000 kg/hr Alfa Laval CLIP 6-RH Chocolate Sauce Skid Mounted Pasteuriser
This is a Used Approx. 1,000 kg/hr Alfa Laval CLIP 6-RH Chocolate Sauce Skid Mounted Pasteuriser, previously used at a Multi-National Food Processing Facility in the UK on Chocolate Custards, held in stock at Lockerbie, Scotland and Available for Immediate Sale.
Pasteuriser:
Manufacturer: Alfa Laval
Type: CLIP 6-RH
Serial No: 30102-45079
Flow Rate: Approx. 1,000 kg/hr (Chocolate Custard)
Max. Working Temp: 120degC
Test Pressure: 28 bar
No. of Sections: 3 Section
No. of Plates: approx. 70 / 46 / 80 Plates
Supports: Mounted on S/S Skid
Inclusions:
CLIP 6-RH Plate Pasteuriser
Waukesha 030/U2 Lobe Pump
Stainless Steel Holding Tubes & Various S/S Pipework
Product & Steam Valves & E+H Flow Meter
Overall Dimensions (L x W x H): 3500mm x 2200mm x 3200mm
Availability: Immediate
Condition: Used
Location: Lockerbie, Scotland
