13,500kg/hour GEA Single Effect MVR Evaporator
Stock Code: 8636
Quantity available: 1
13,500kg/hour GEA Single Effect MVR Evaporator
This is a Used approx. 13,500kg/hour GEA Single Effect MVR Evaporator, fully de-commissioned and held in stock at Lockerbie, Scotland available for immediate sale.
This is a Used approx. 13,500kg/hour GEA Single Effect MVR Evaporator, fully de-commissioned and held in stock at Lockerbie, Scotland available for immediate sale.

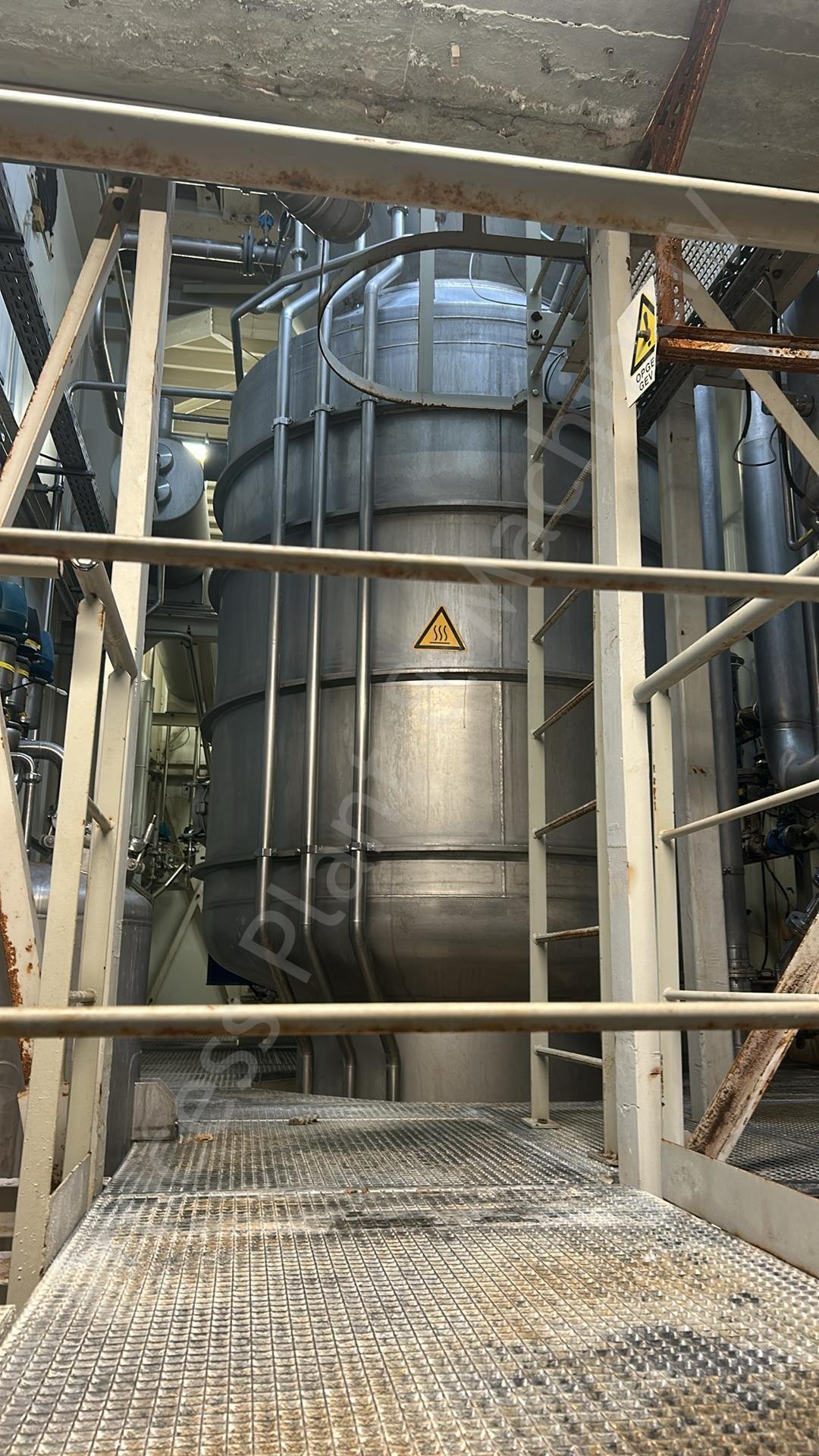

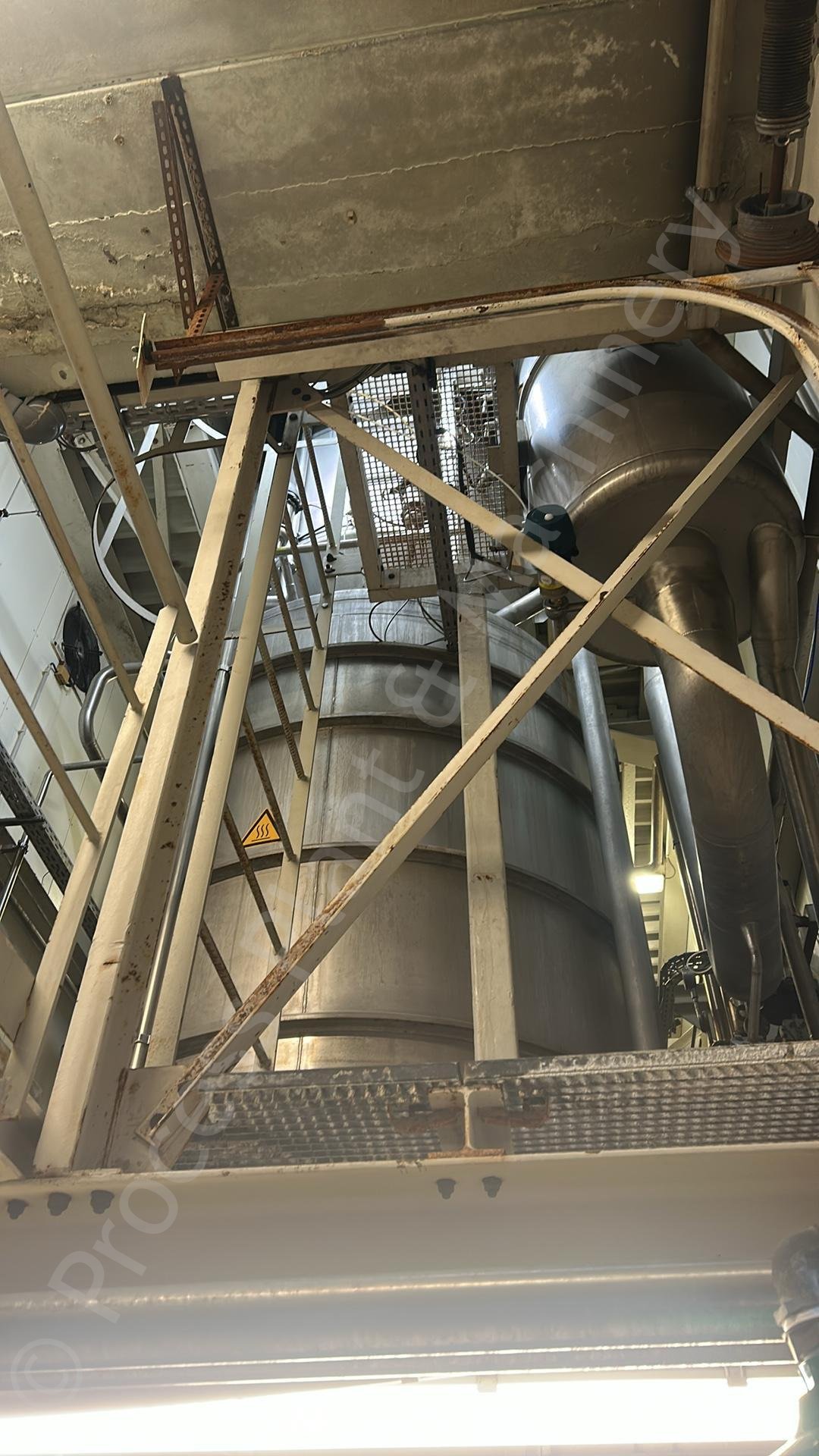

Evaporator:

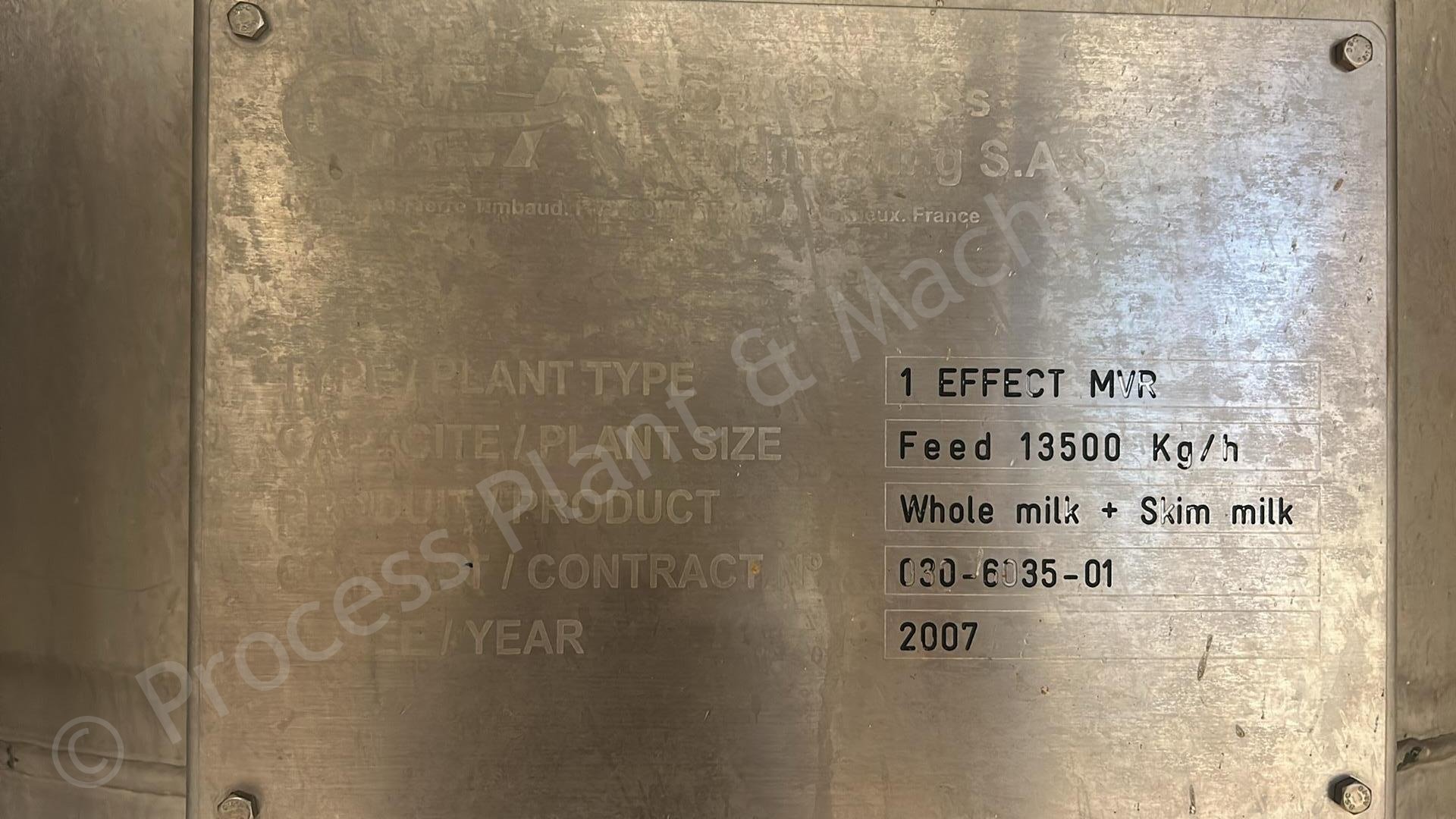

Manufacturer: GEA, France
Type: Single Effect MVR Evaporator
Capacity: Feed 13,500kg/hour
Product: Whole Milk & Skim Milk
YOM: 2007

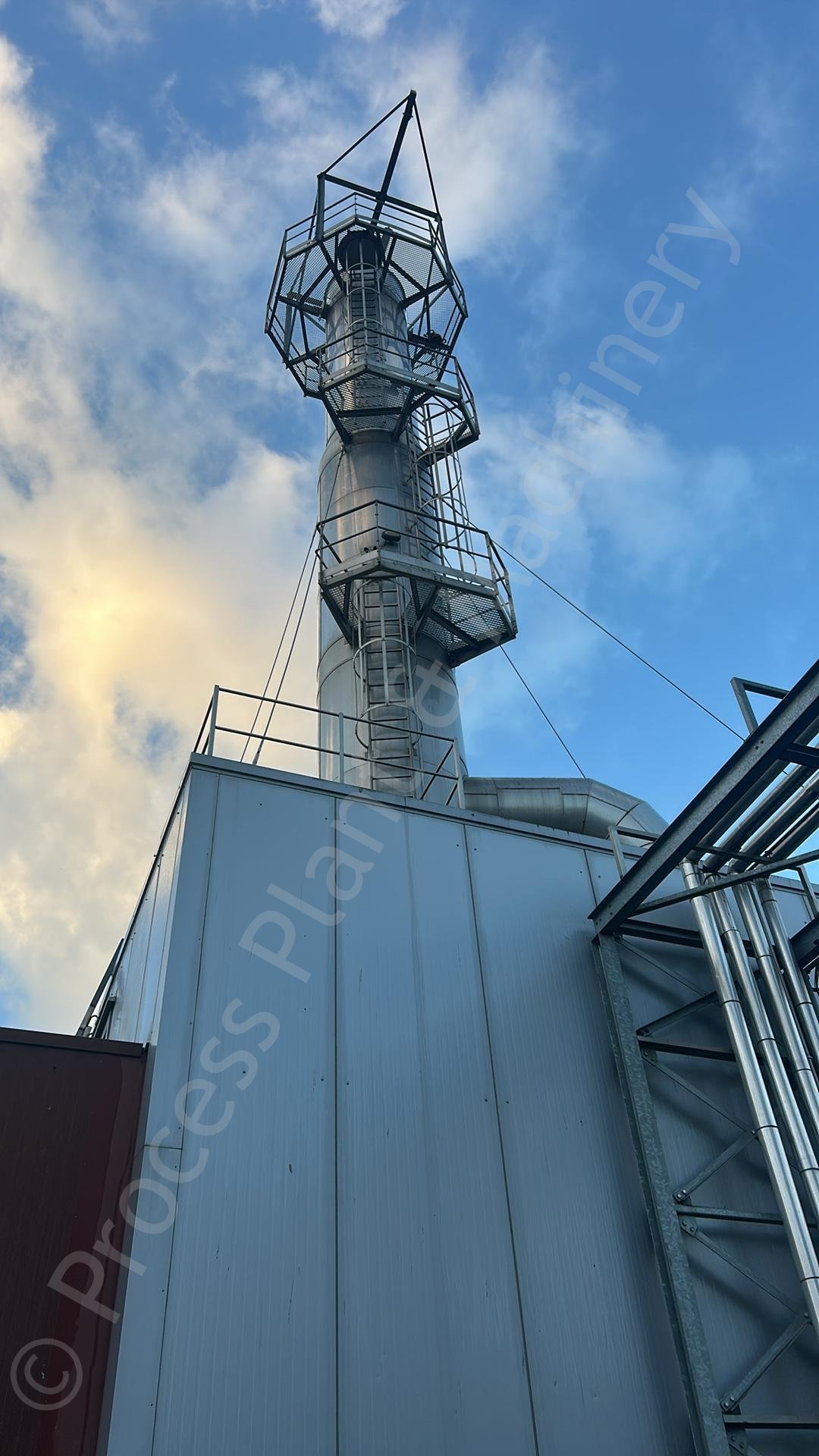

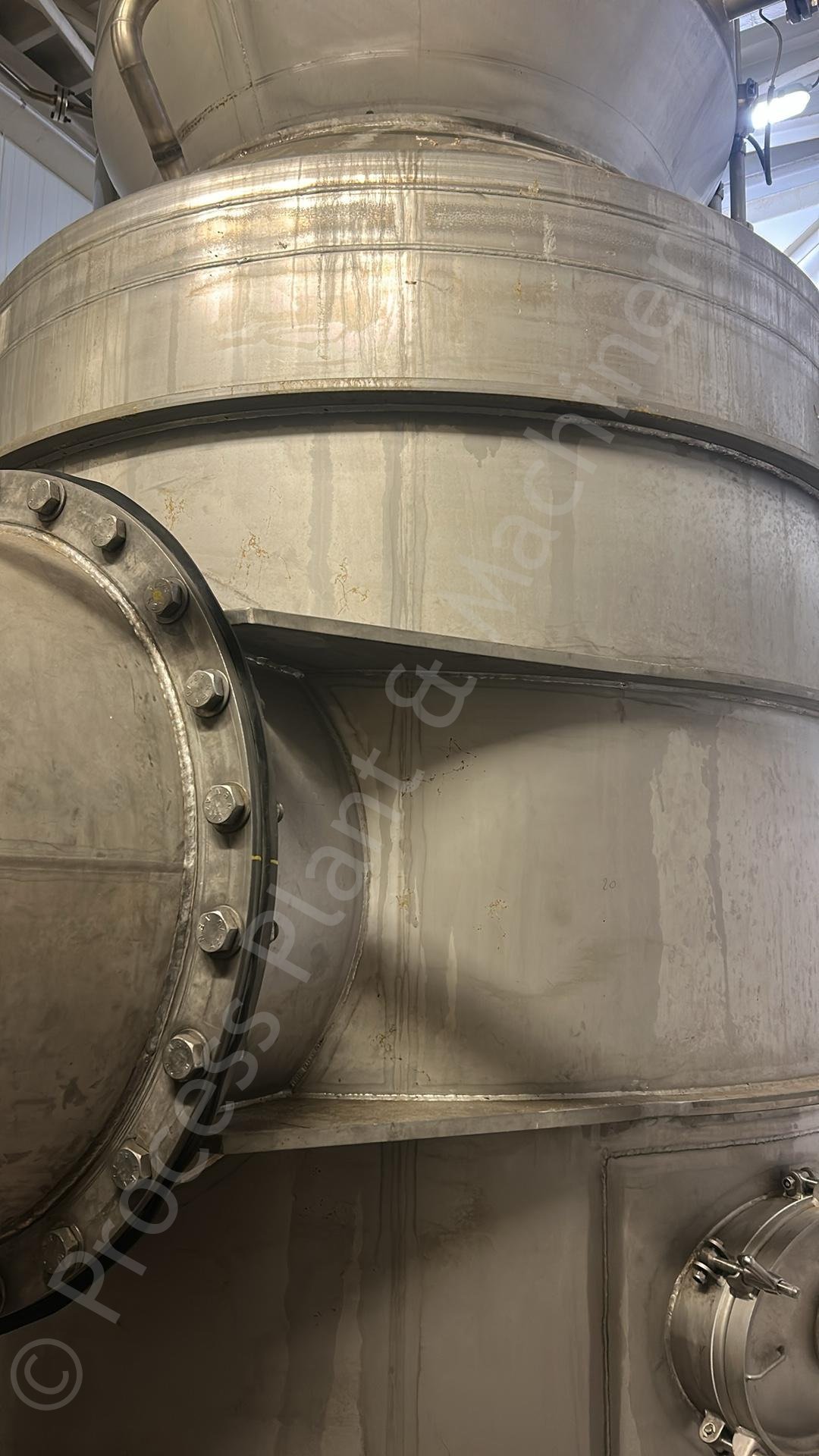

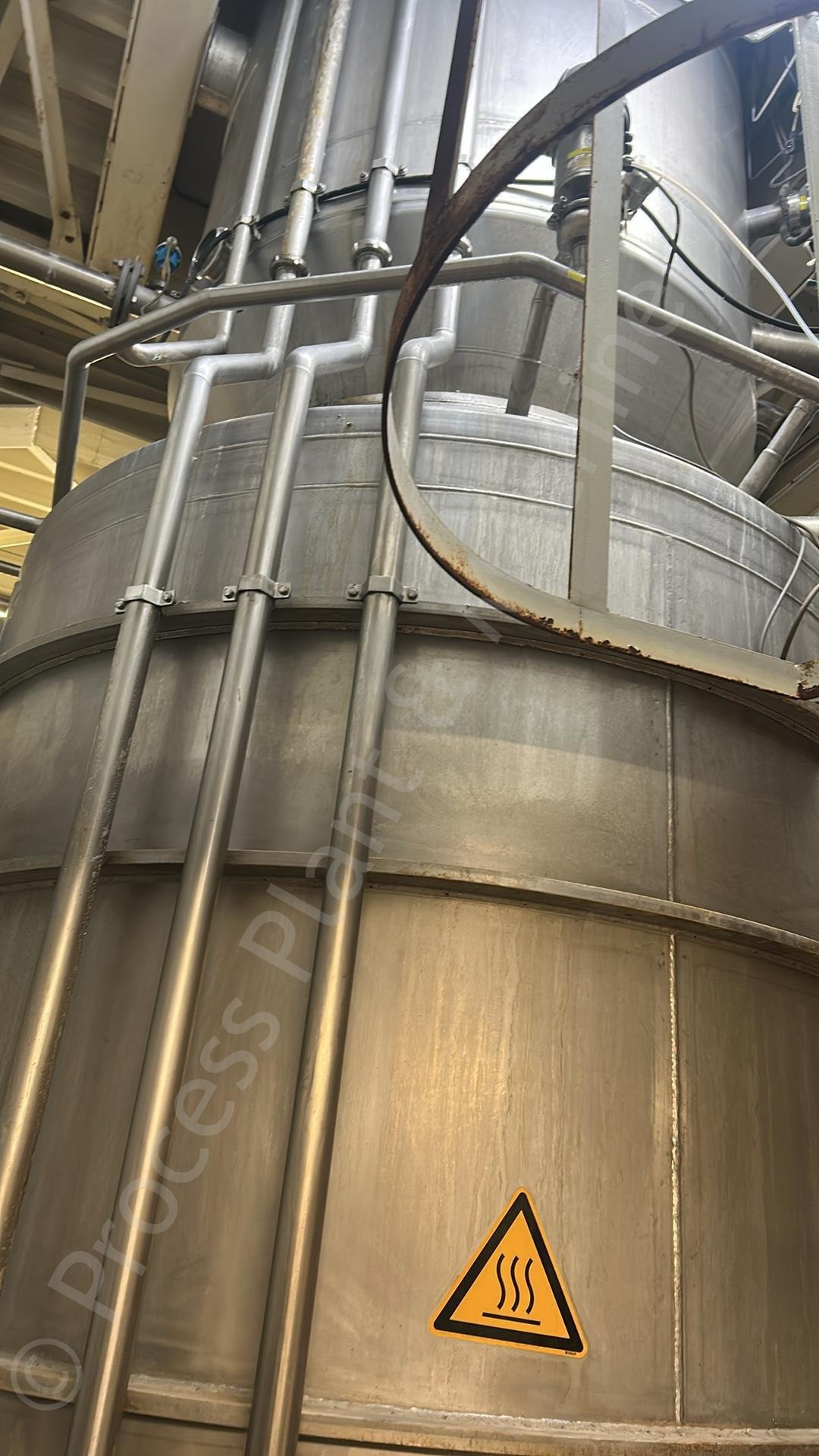

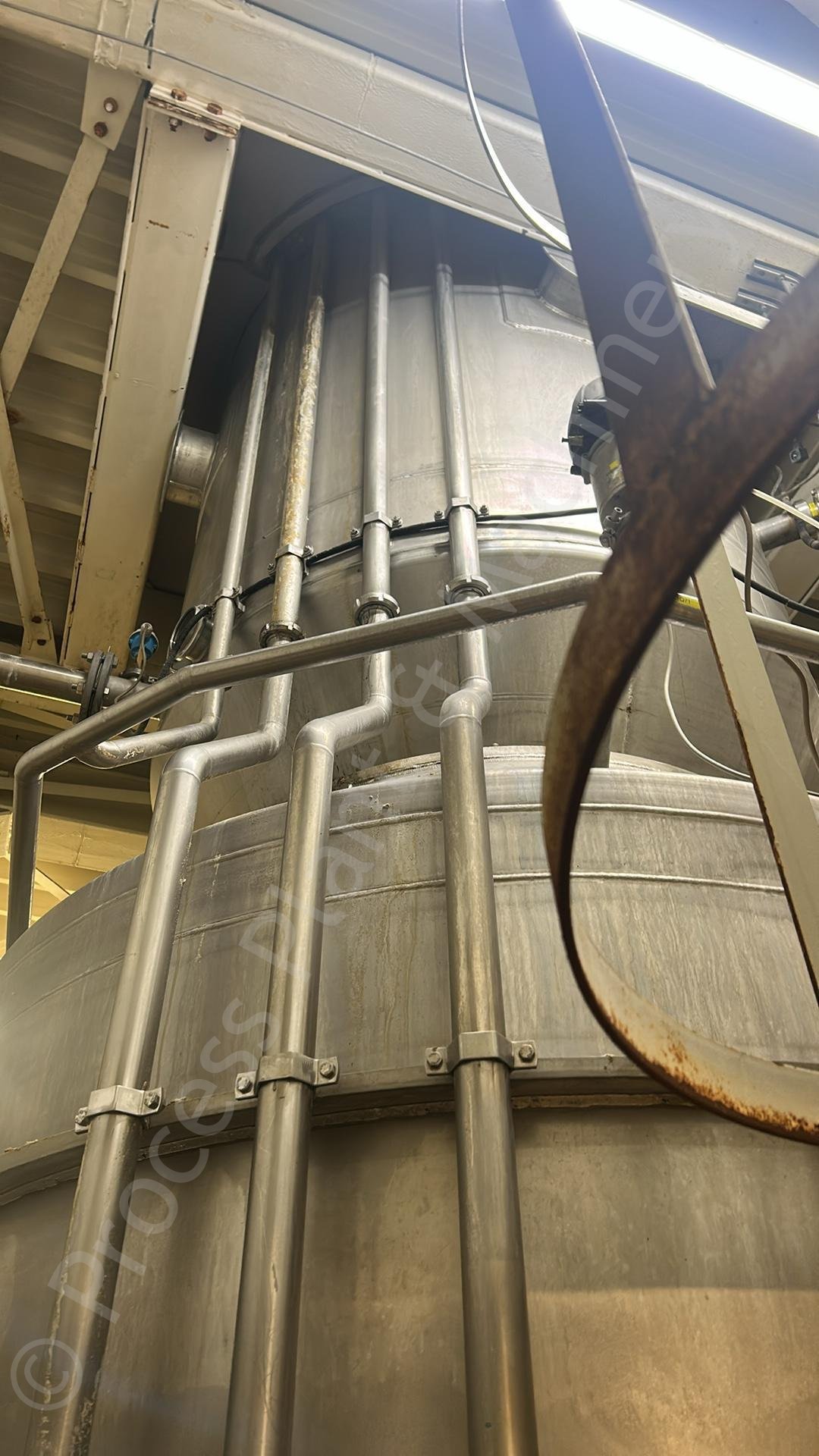

Calandria Height: approx. 22800mm
Condition: Used
Location: Lockerbie, Scotland
Availability: Immediate

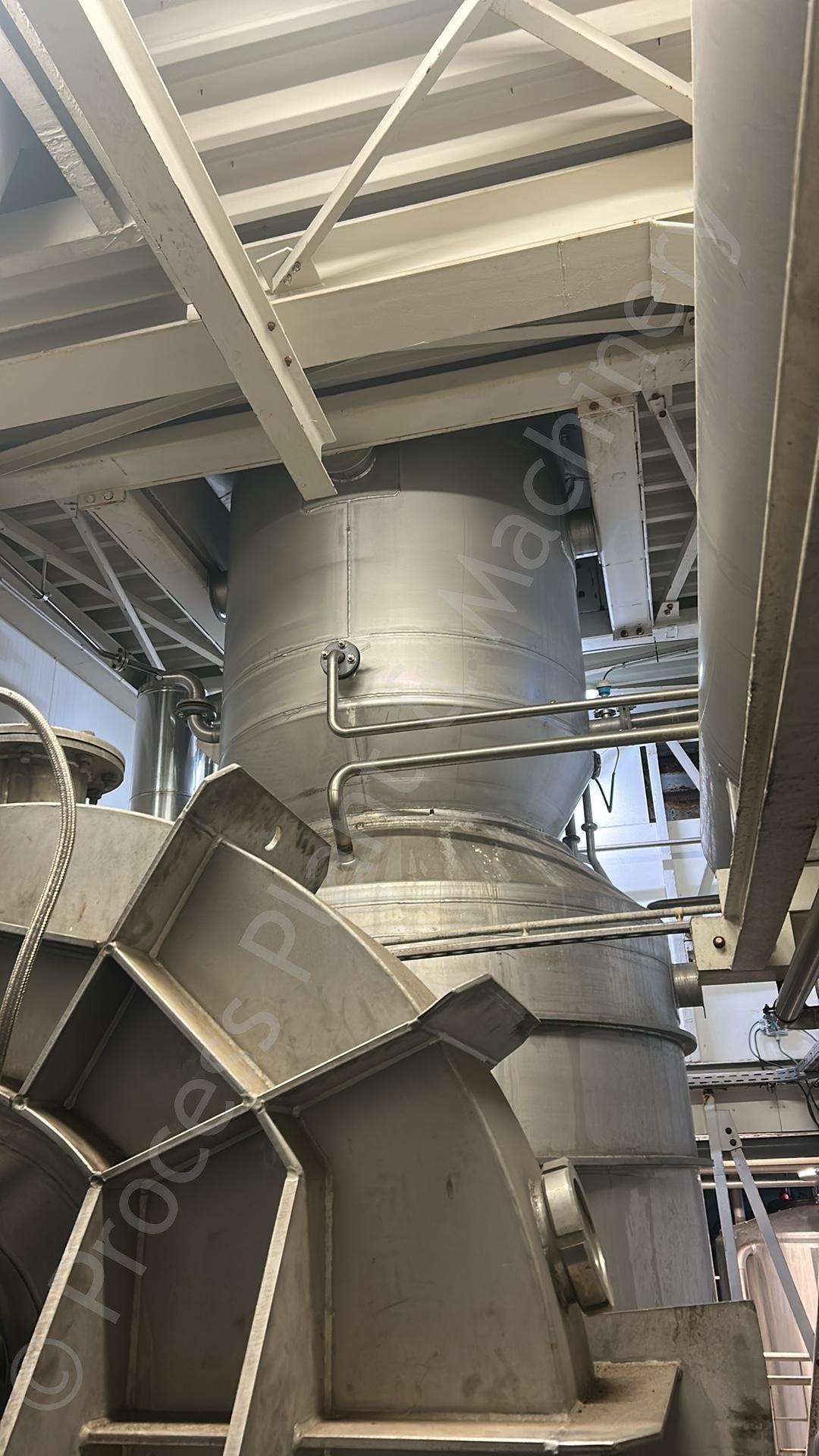

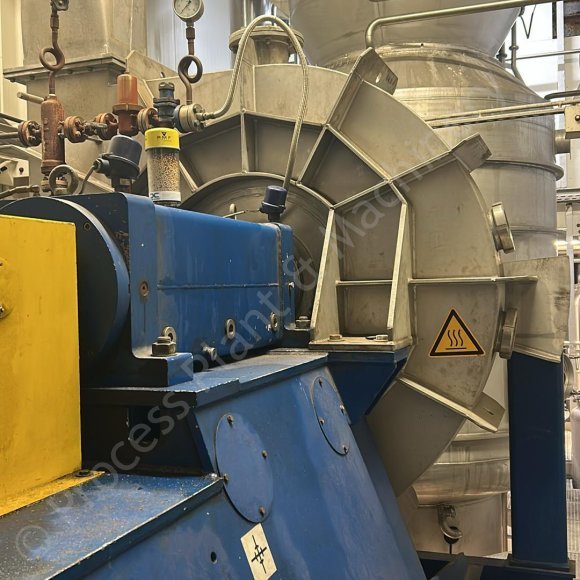

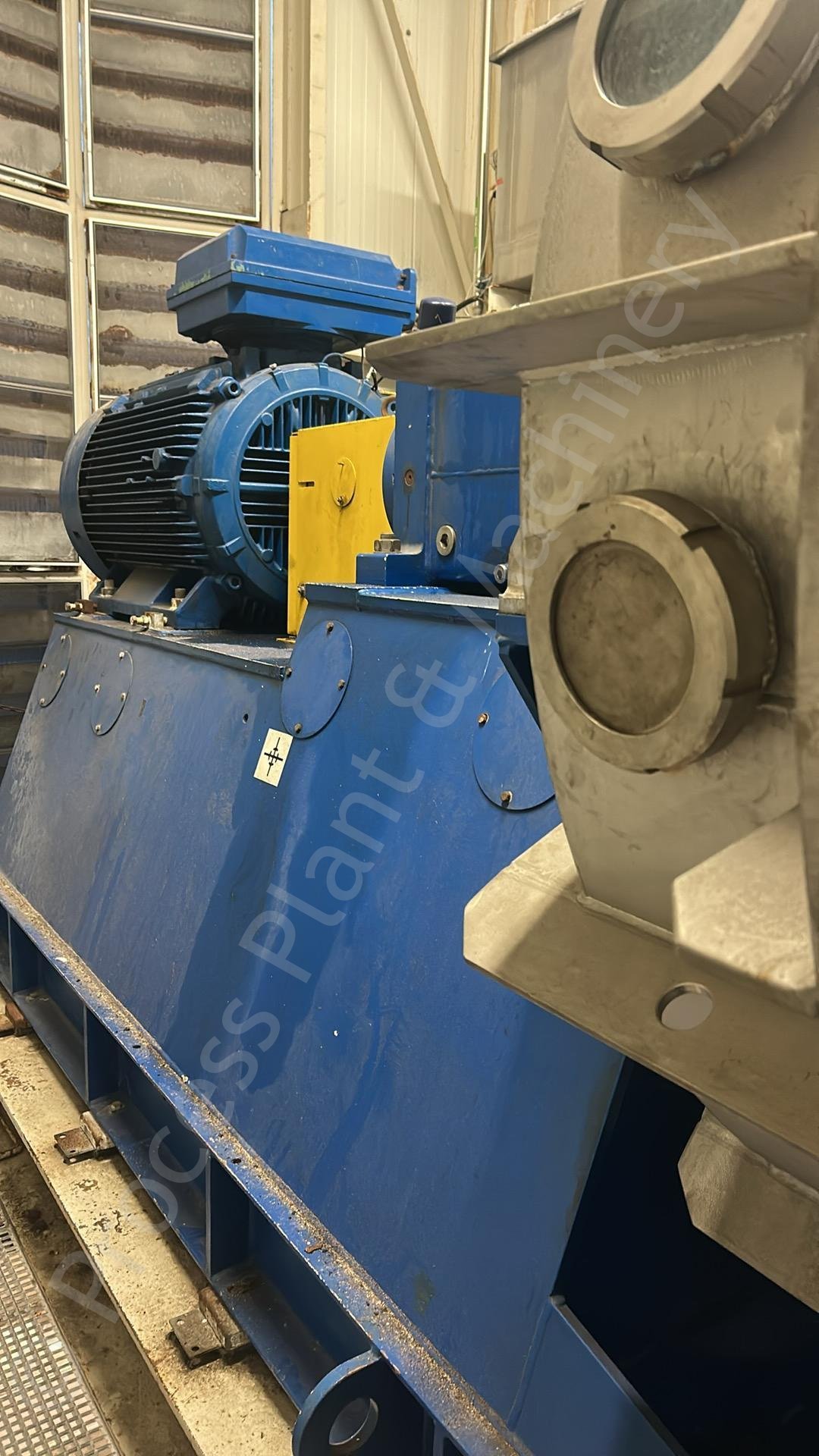

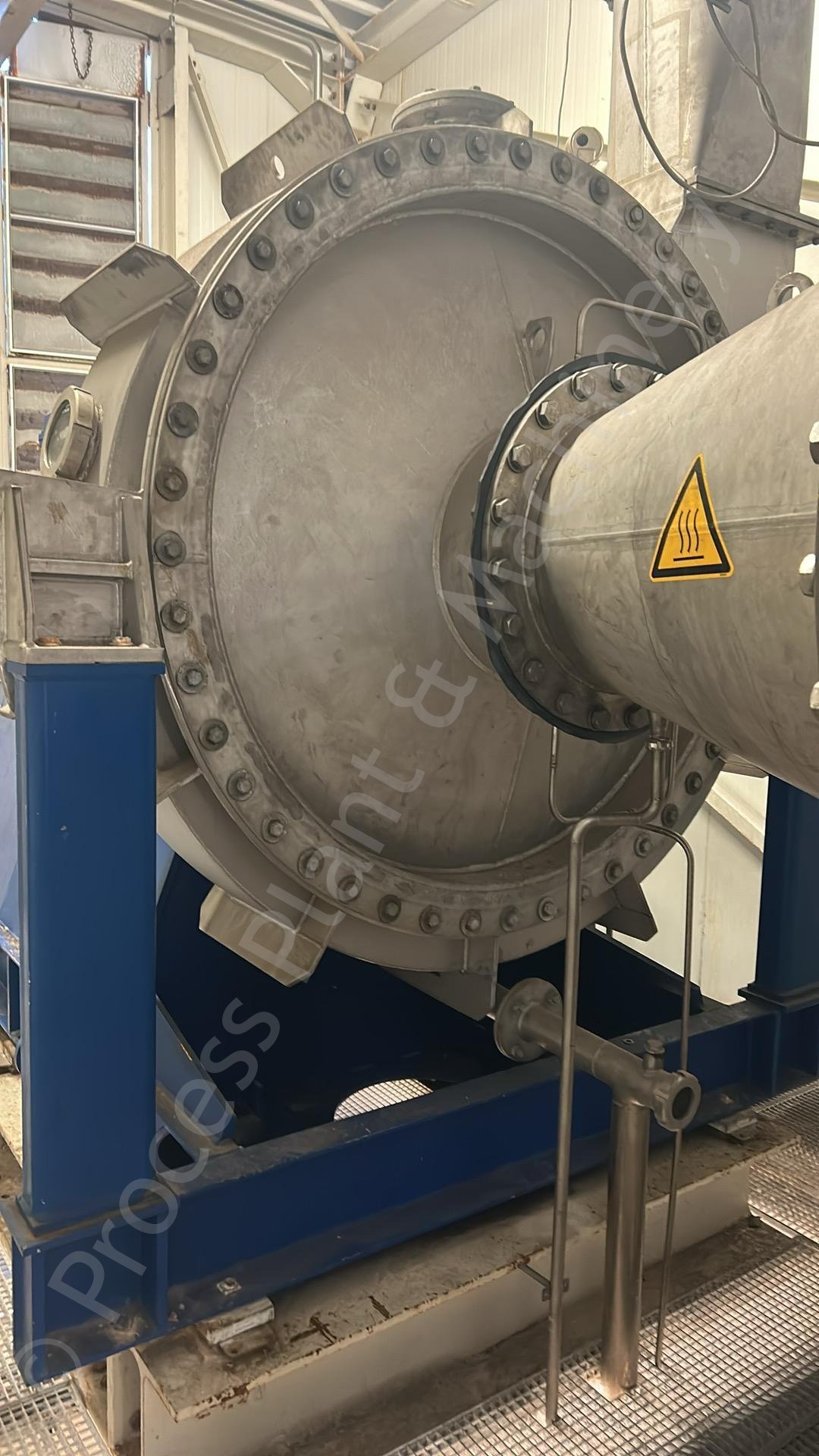

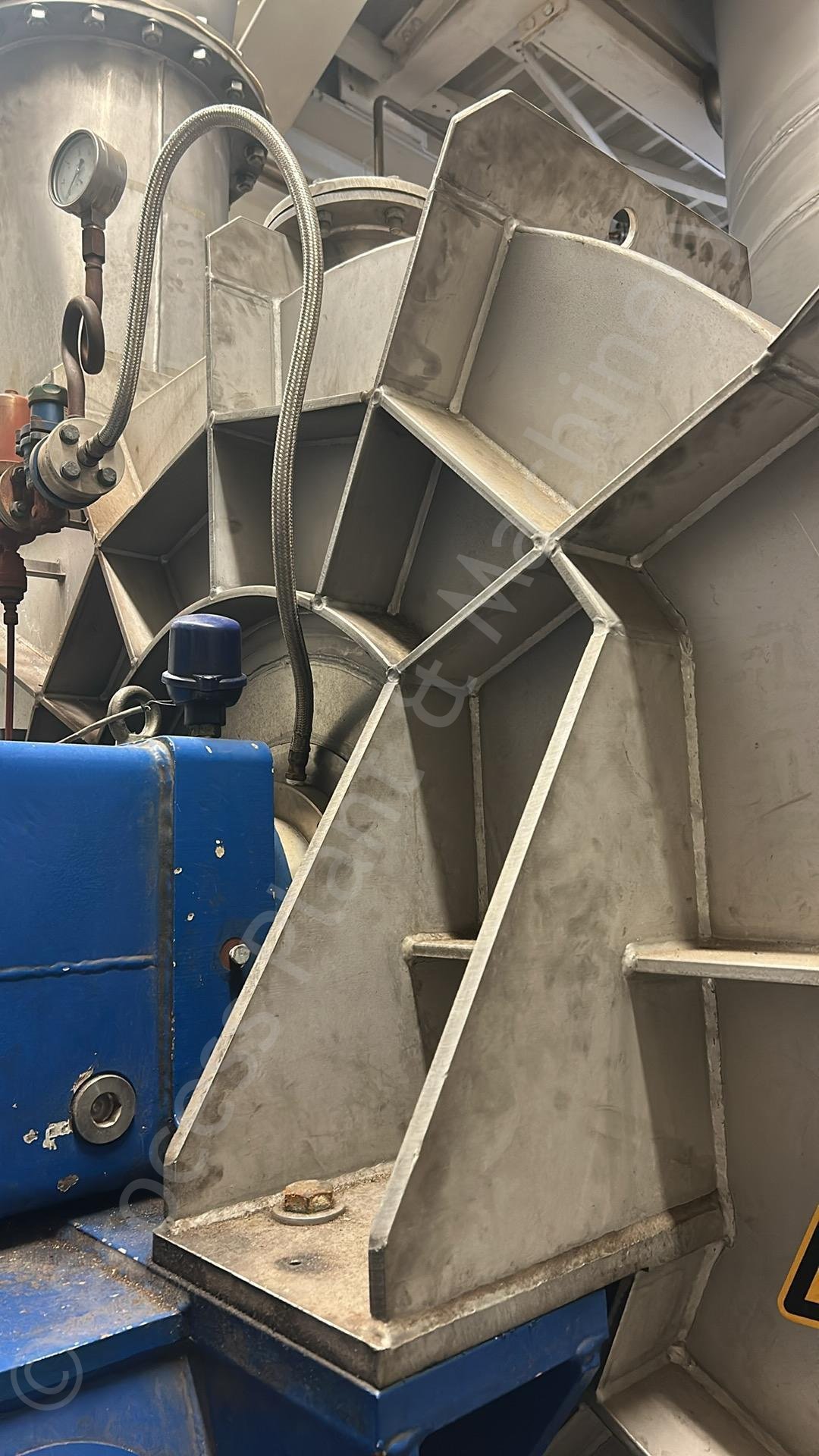

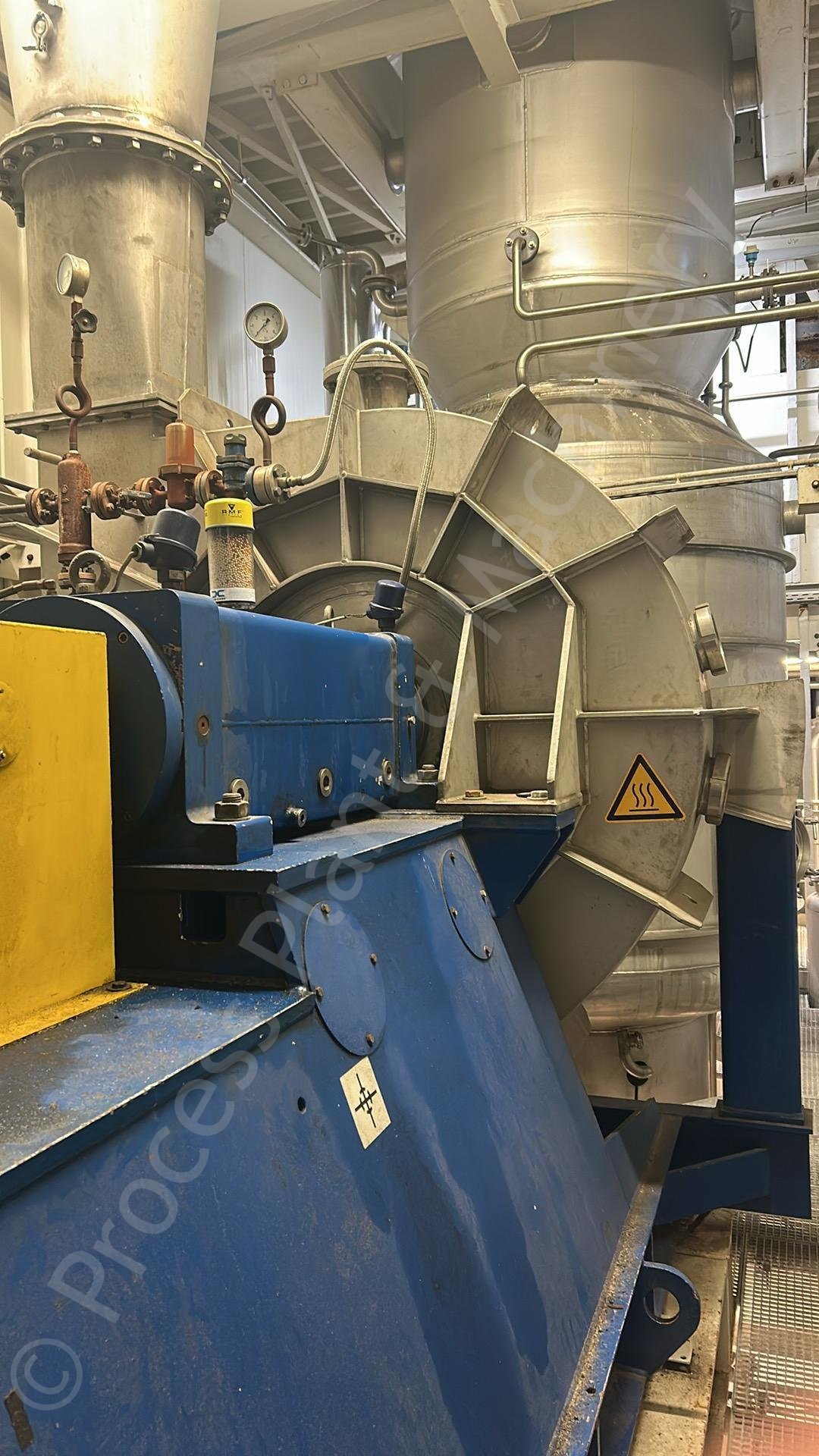

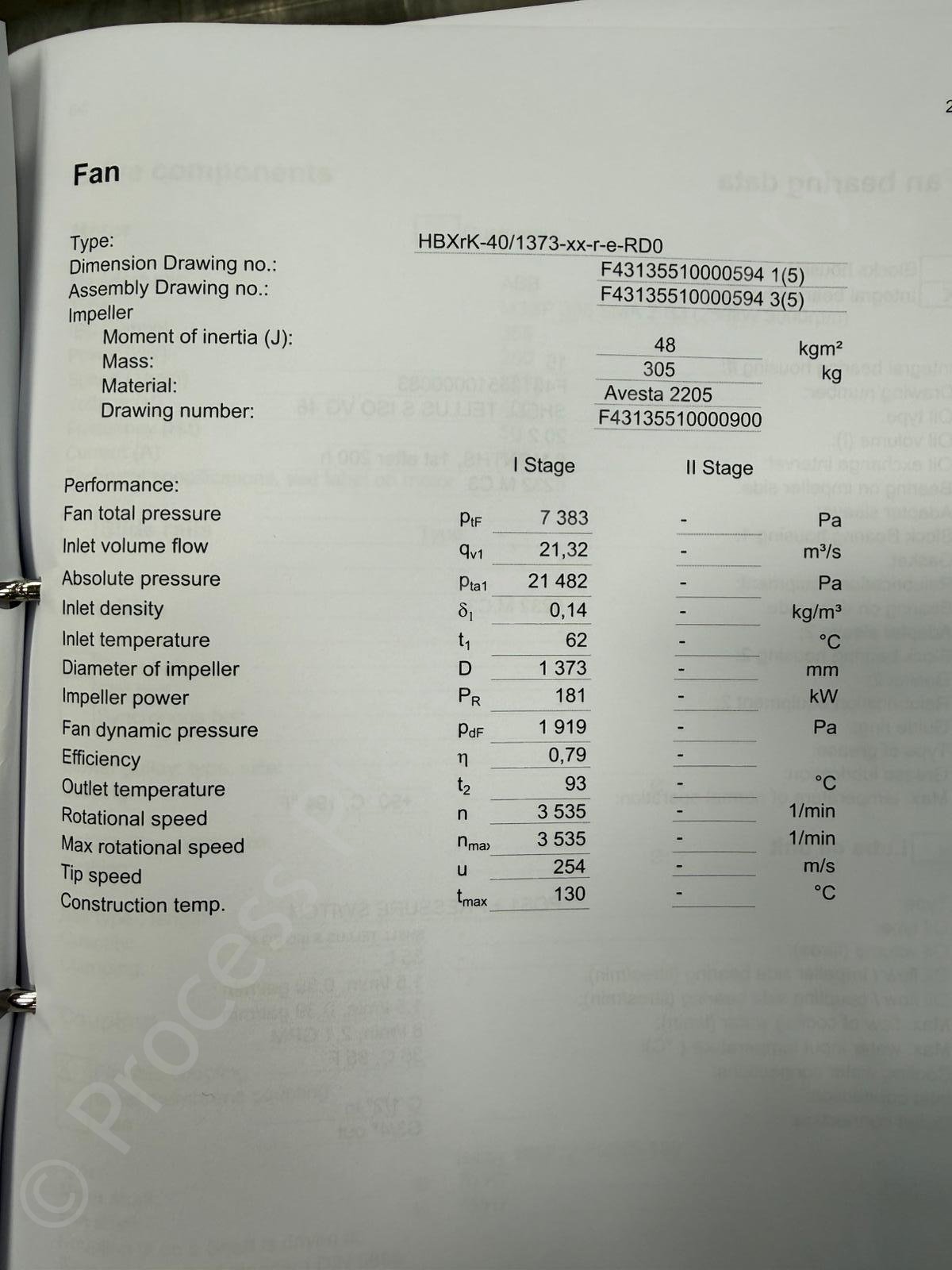

Fan Specification:
Type: HBXrK-40/1373-xx-r-eRD0

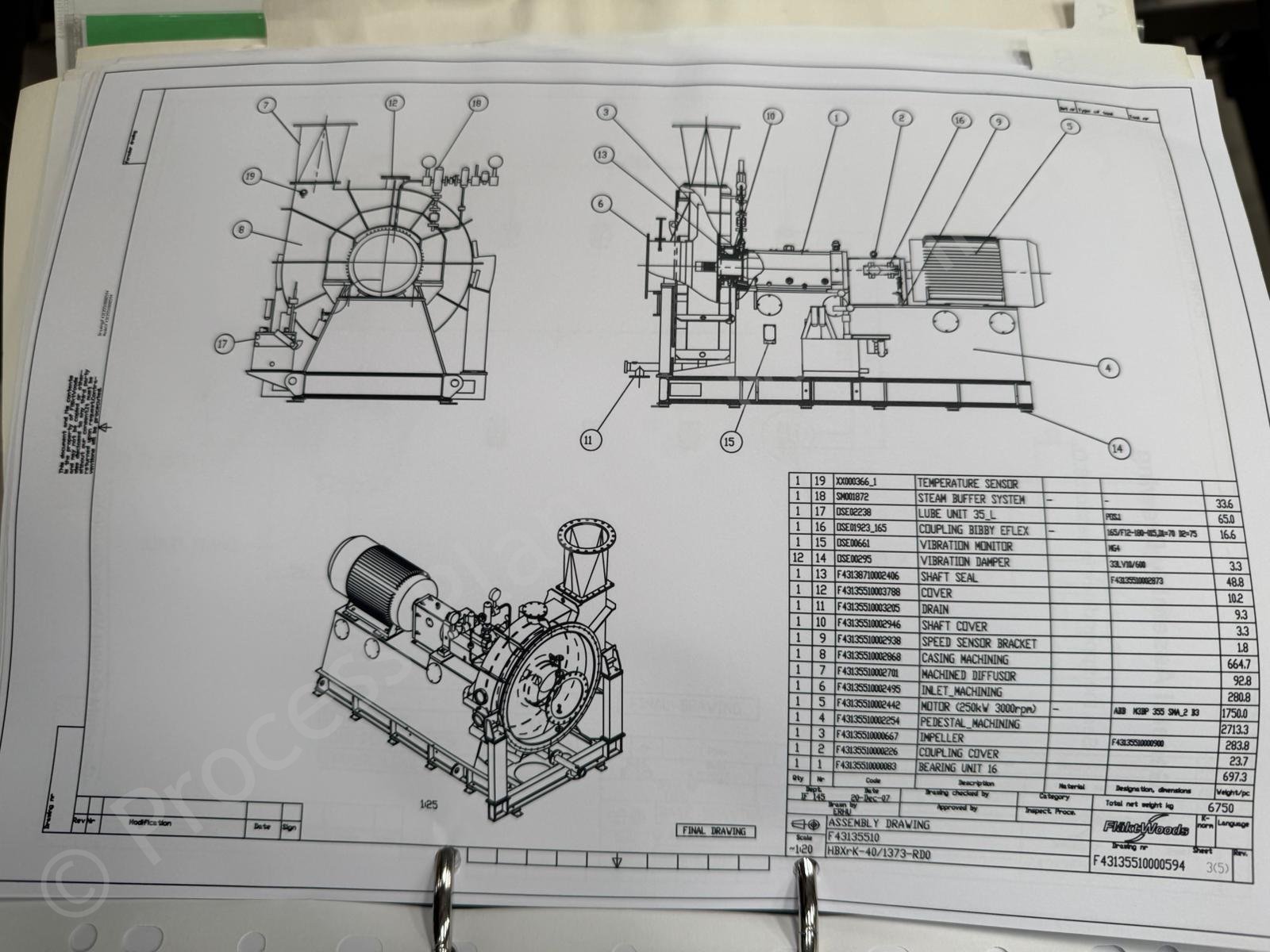

Dimension Drawing: F43135510000594 1 (5)
Fan Total Pressure: 7383 PA
Inlet Volume Flow: 21,32 M 3/S
Absolute Pressure: 21,482 PA
Inlet Density: 0,14 kg/m3
Inlet Temperature: 62°c
Diameter Of Impeller: 1373 mm
Impeller Power: 181kw
Max Roational Speed: 3535 1/min
