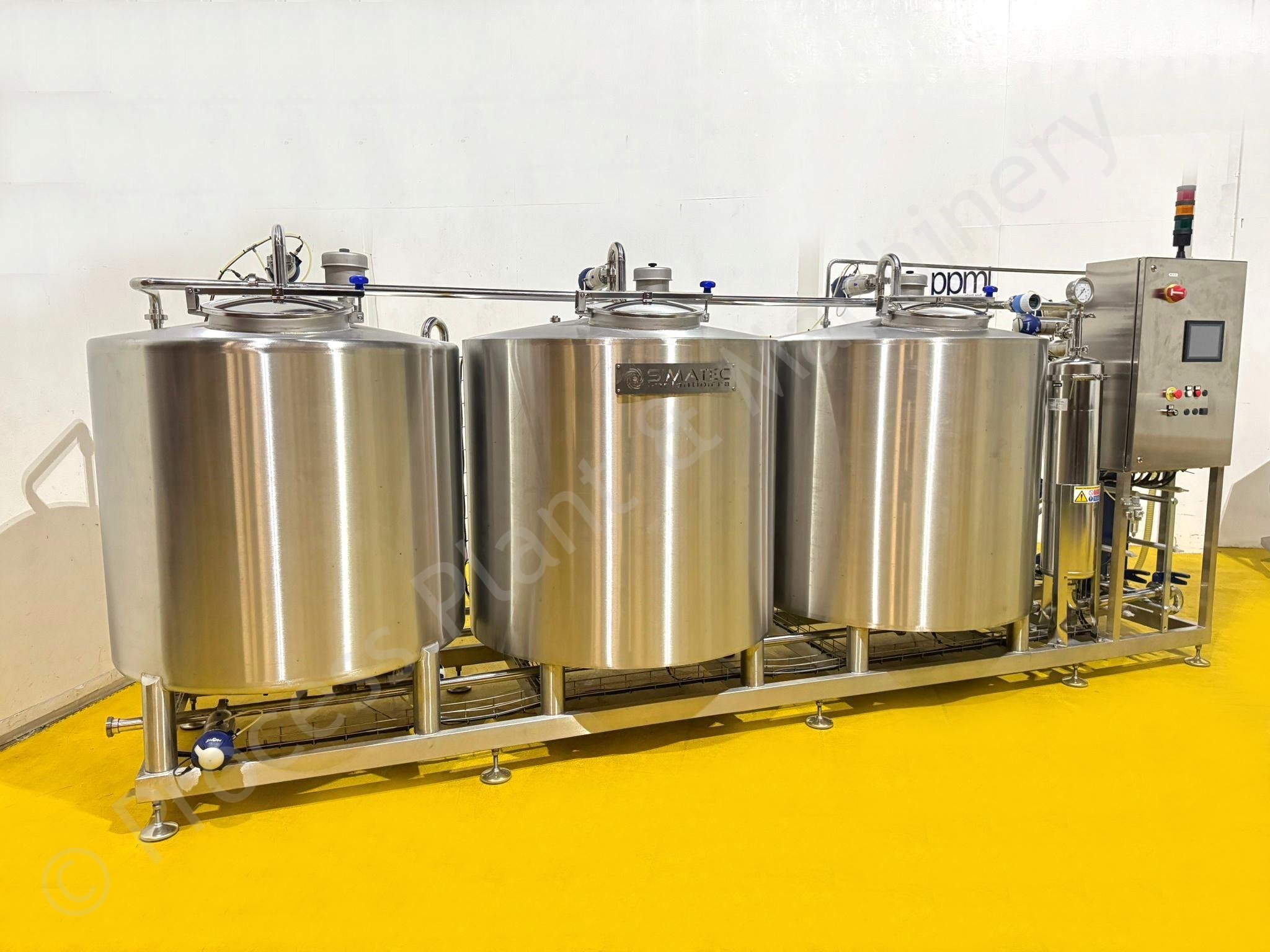

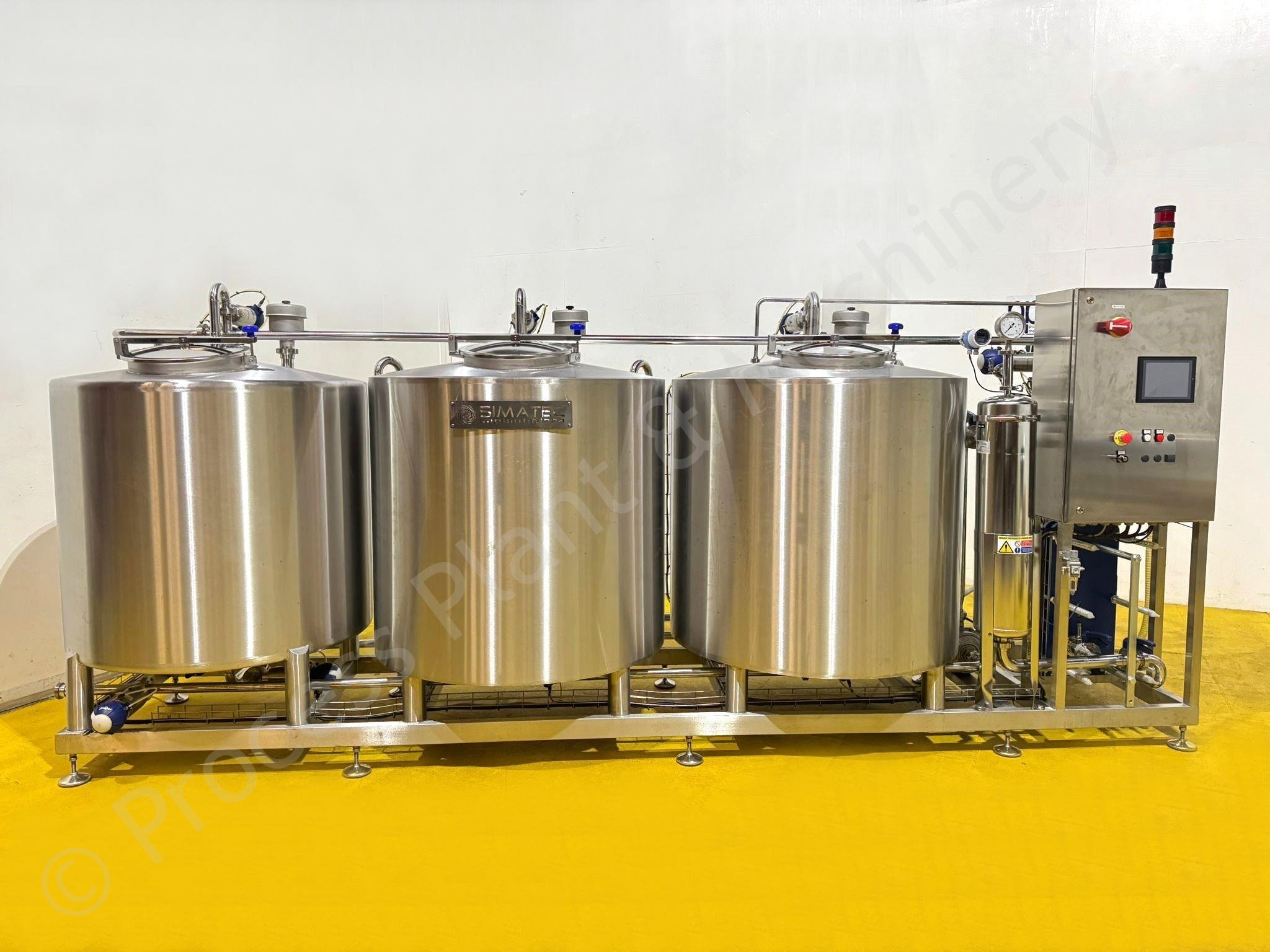

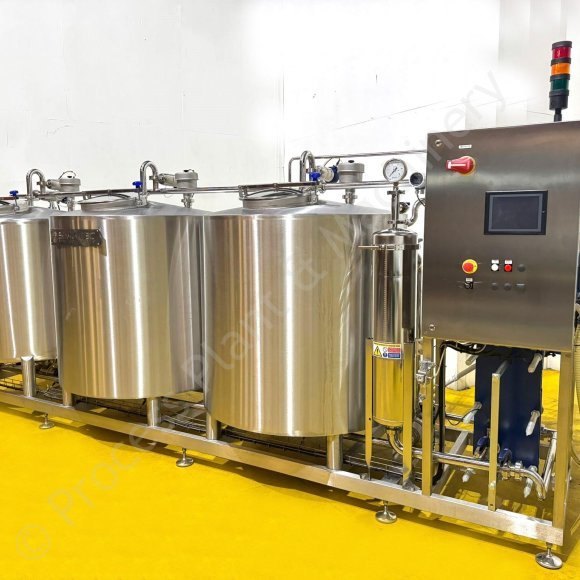

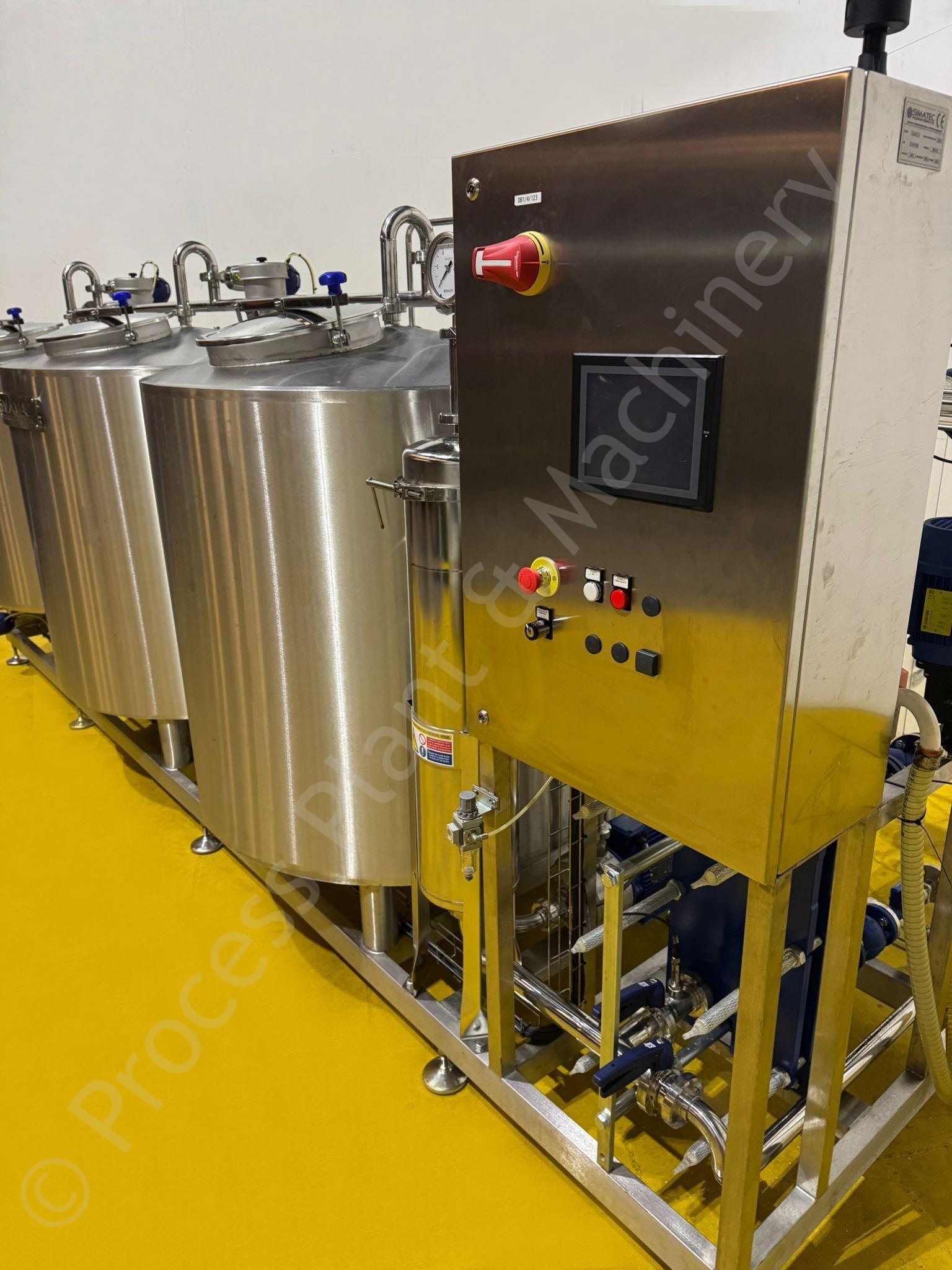

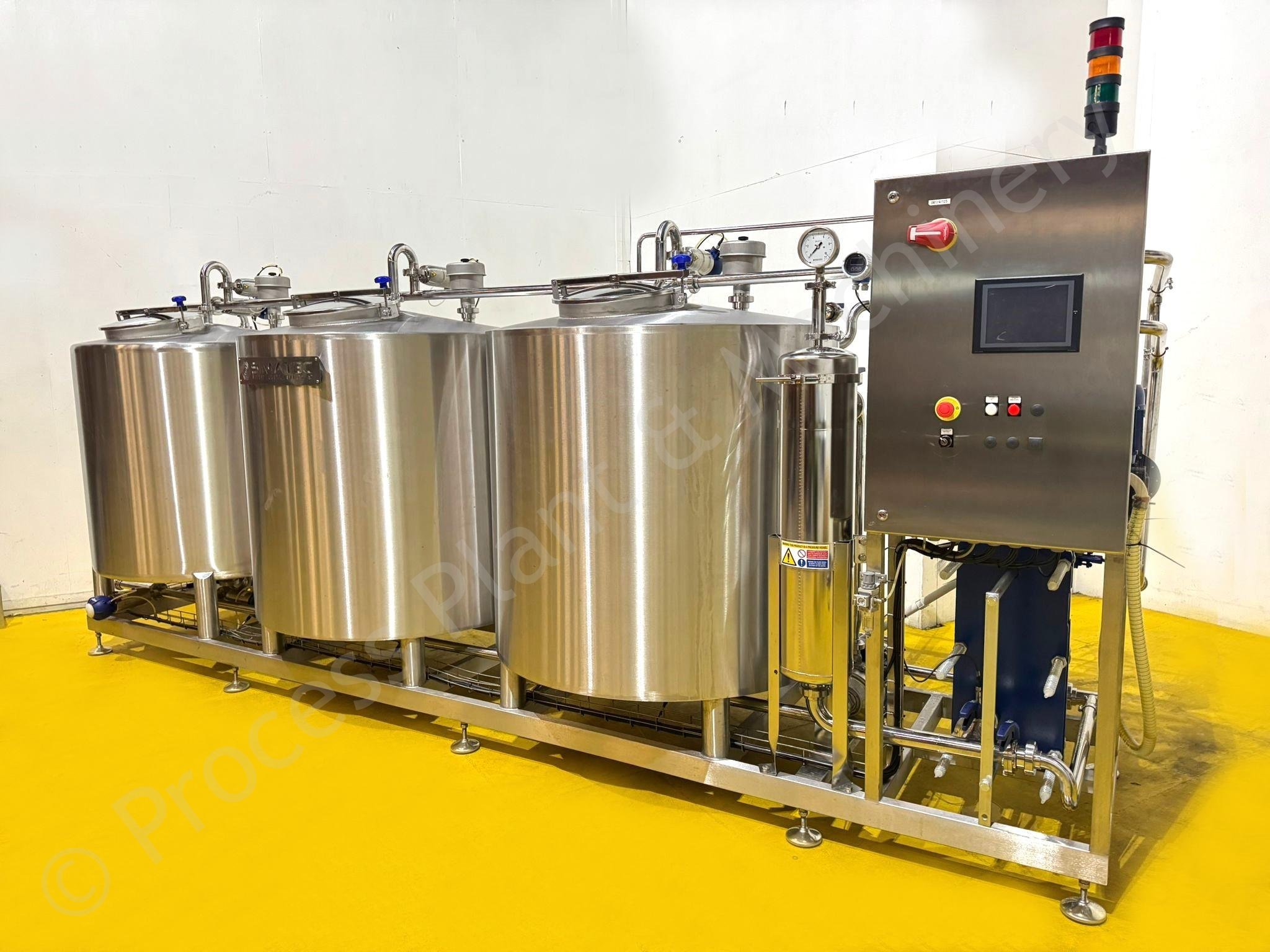

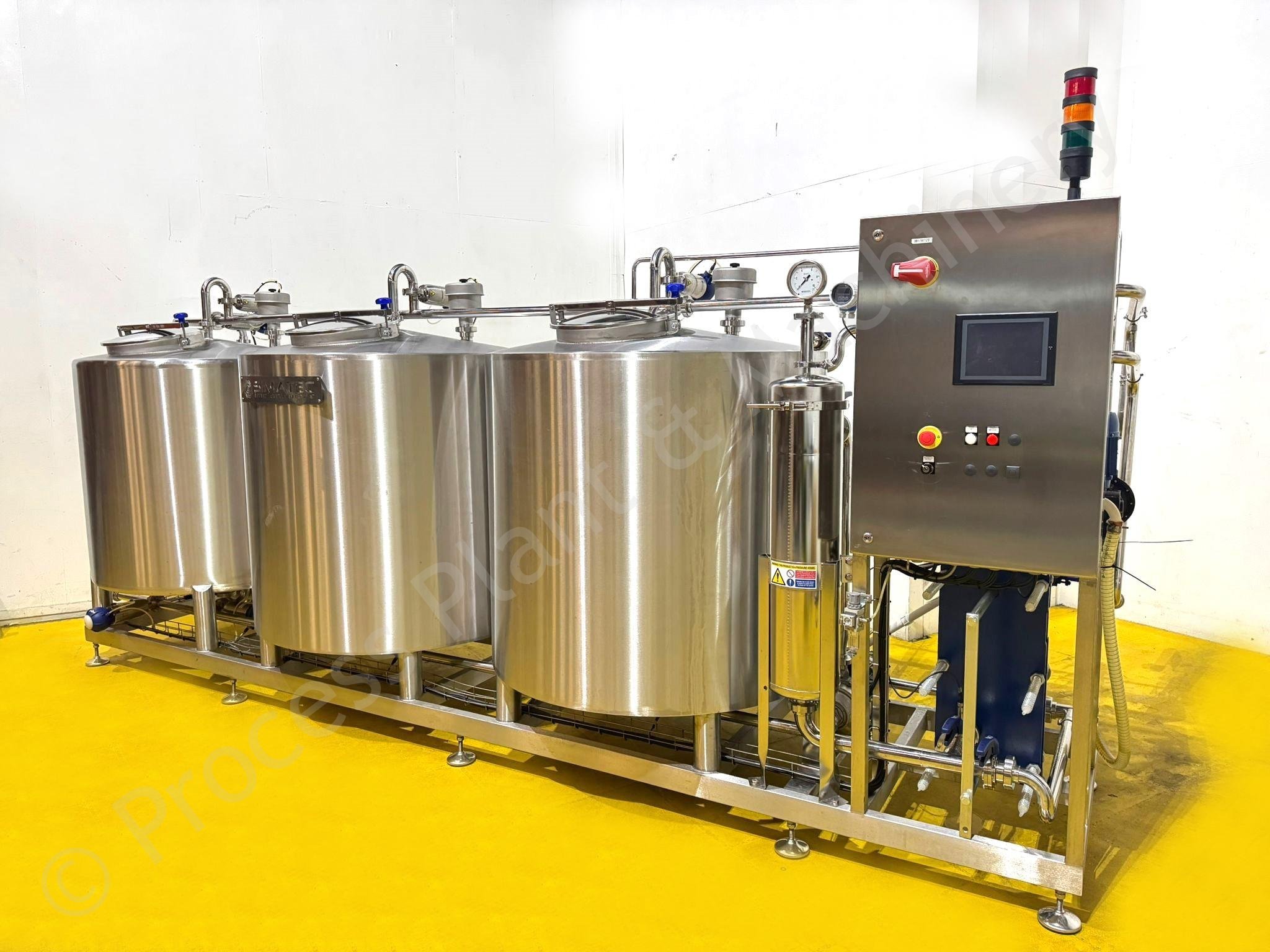

Fully Automated 3 Tank & 1 Channel Skid Mounted CIP System
This is a Used Fully Automated 3 Tank & 1 Channel Skid Mounted CIP System, Manufactured in 2019, consisting of 3x 1,000 Ltr Tanks, Lowara Pump, Sondex Plate Heat Exchnager, 10x Actuated Butterfly valves, Steam Valves, Level Sensors, E+H Conductivity Probe, Dosing Pump & Automated Control Panel with Schneider Plc, held in stock at Lockerbie, Scotland and Available for Immediate Sale.

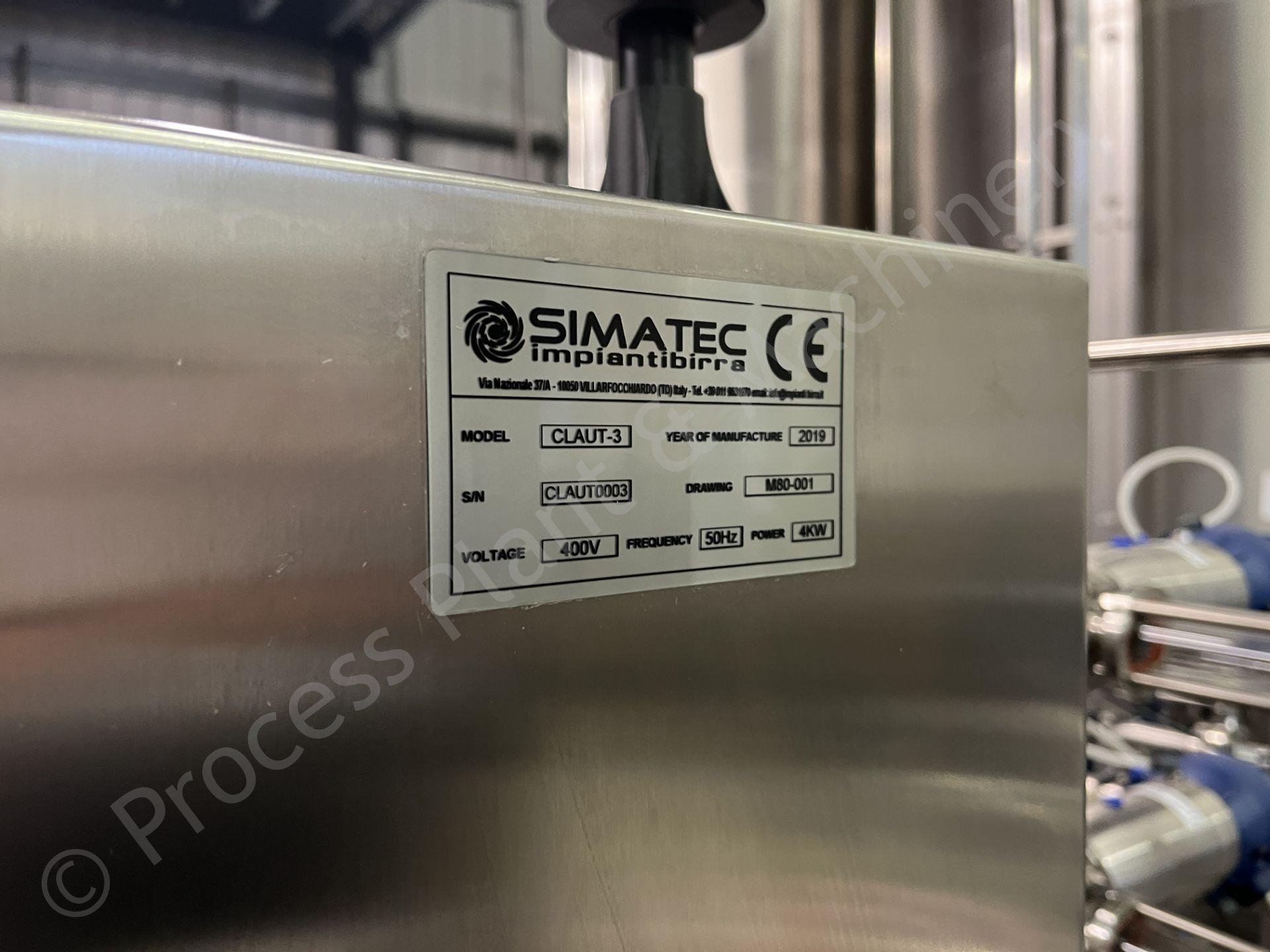

Manufacturer: Simatec Impiantibirra, Italy
Type: 3-Tank 1-Channel
Model: CLAUT 3
Serial Number: CLAUT0003
Year: 2019
Electrical: 4kw, 400v, 50Hz

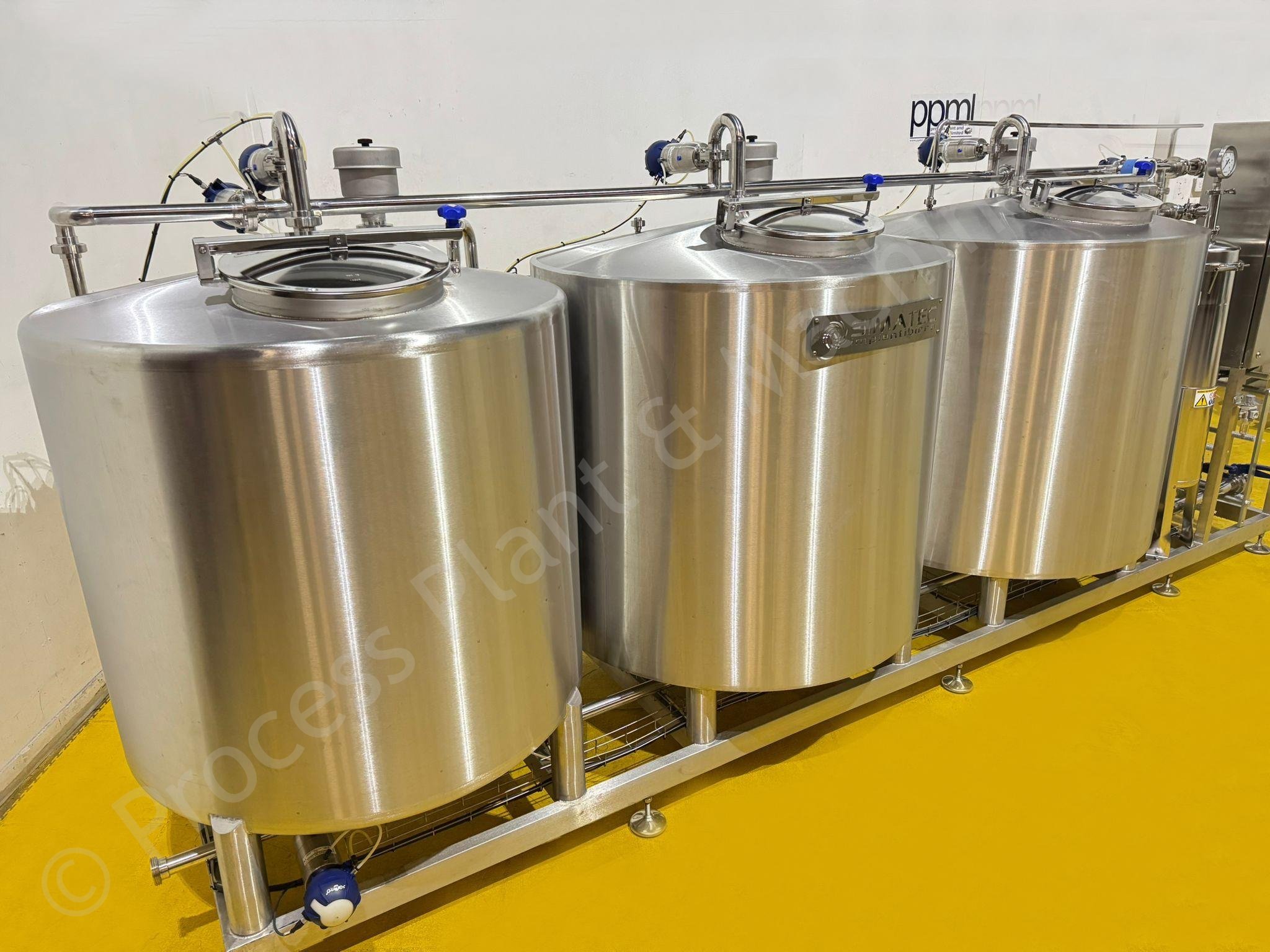

Tanks: 3x 1,000 Ltr Tanks (Caustic, Fresh Water, Rinse) - 1x Single Skin, 2x Insulated

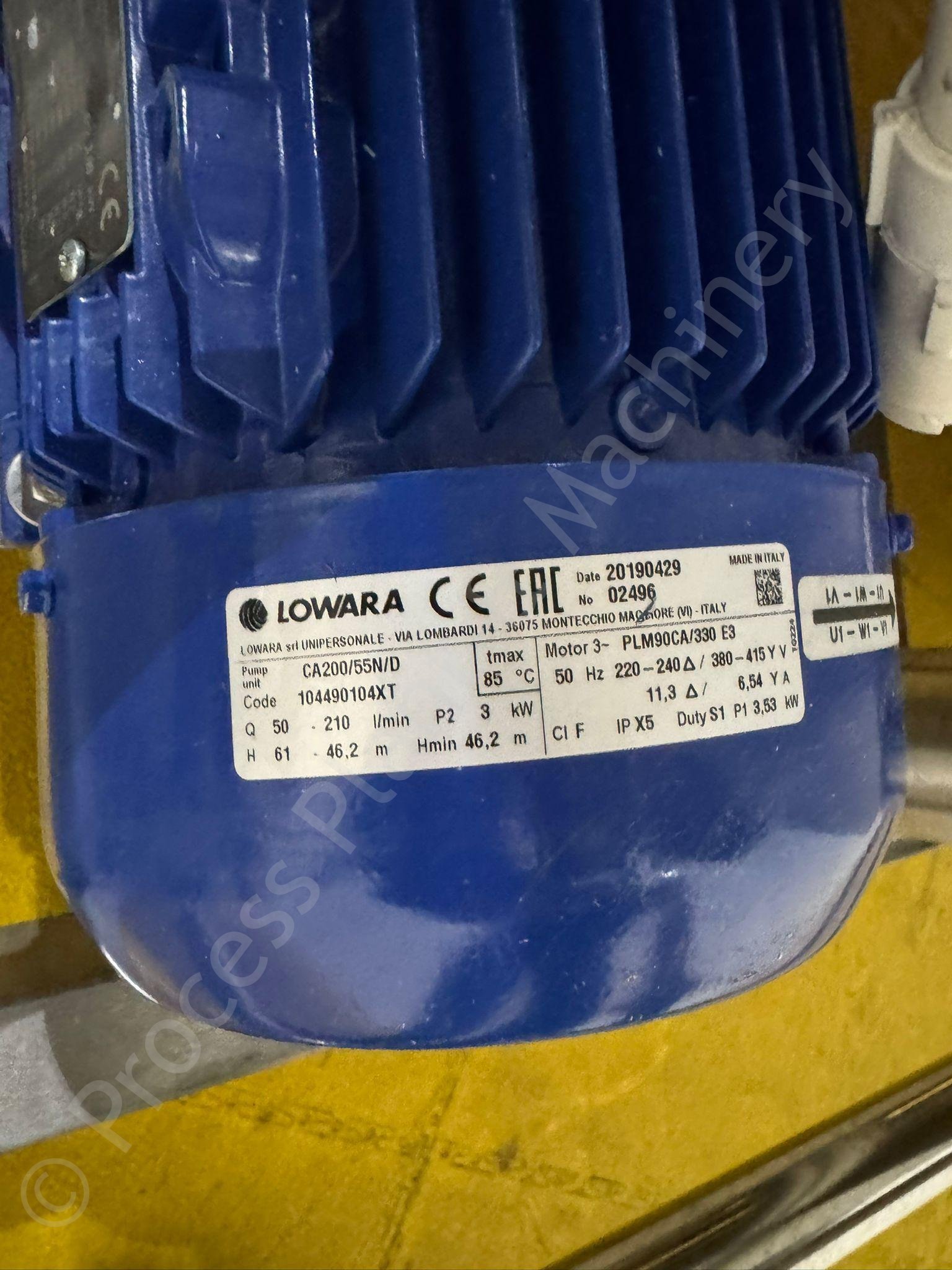

Pump: 1x Lowara CA200/55N/D Pump
Flow: approx. 210 l/min (12,600 LPH)

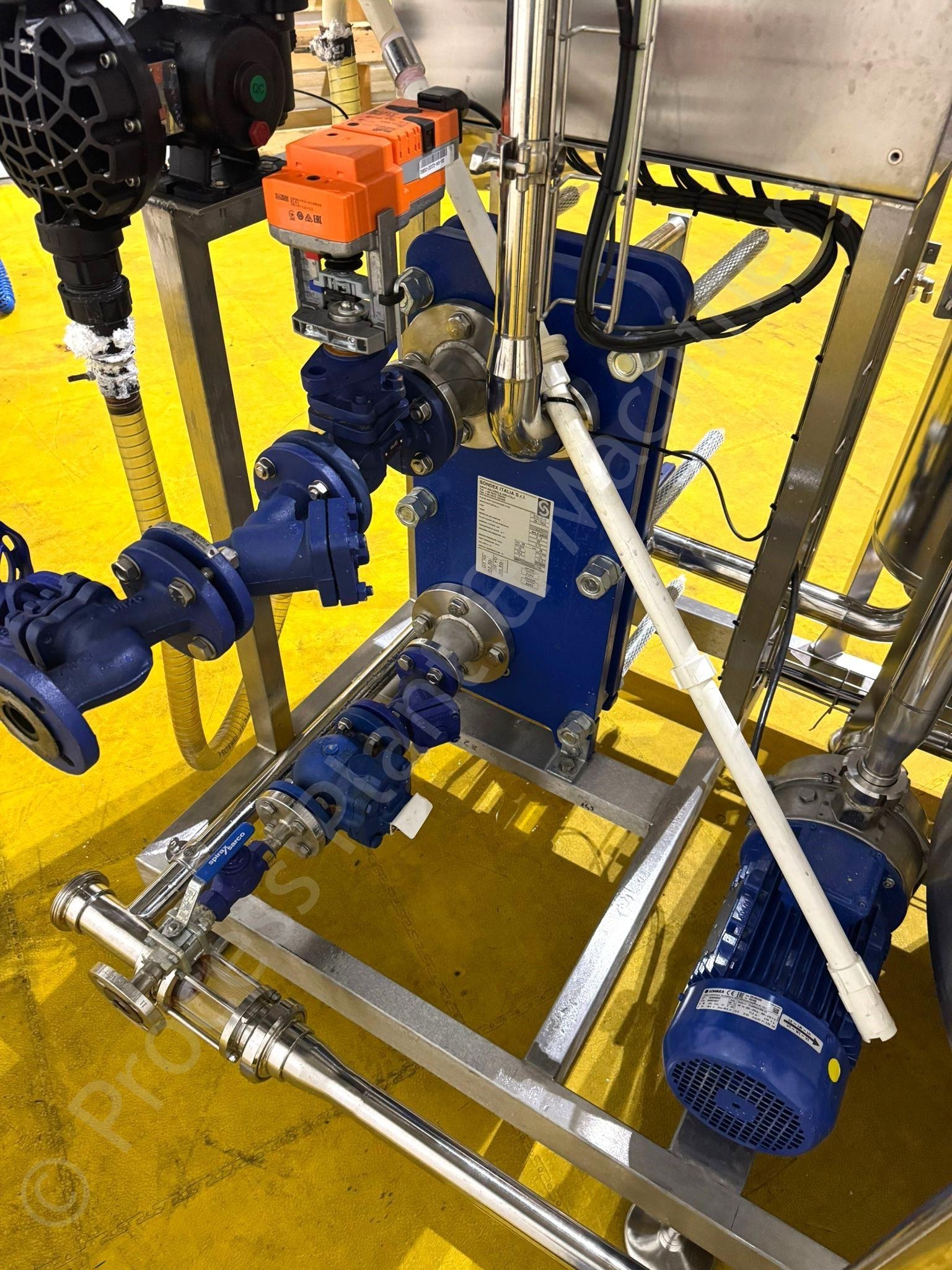

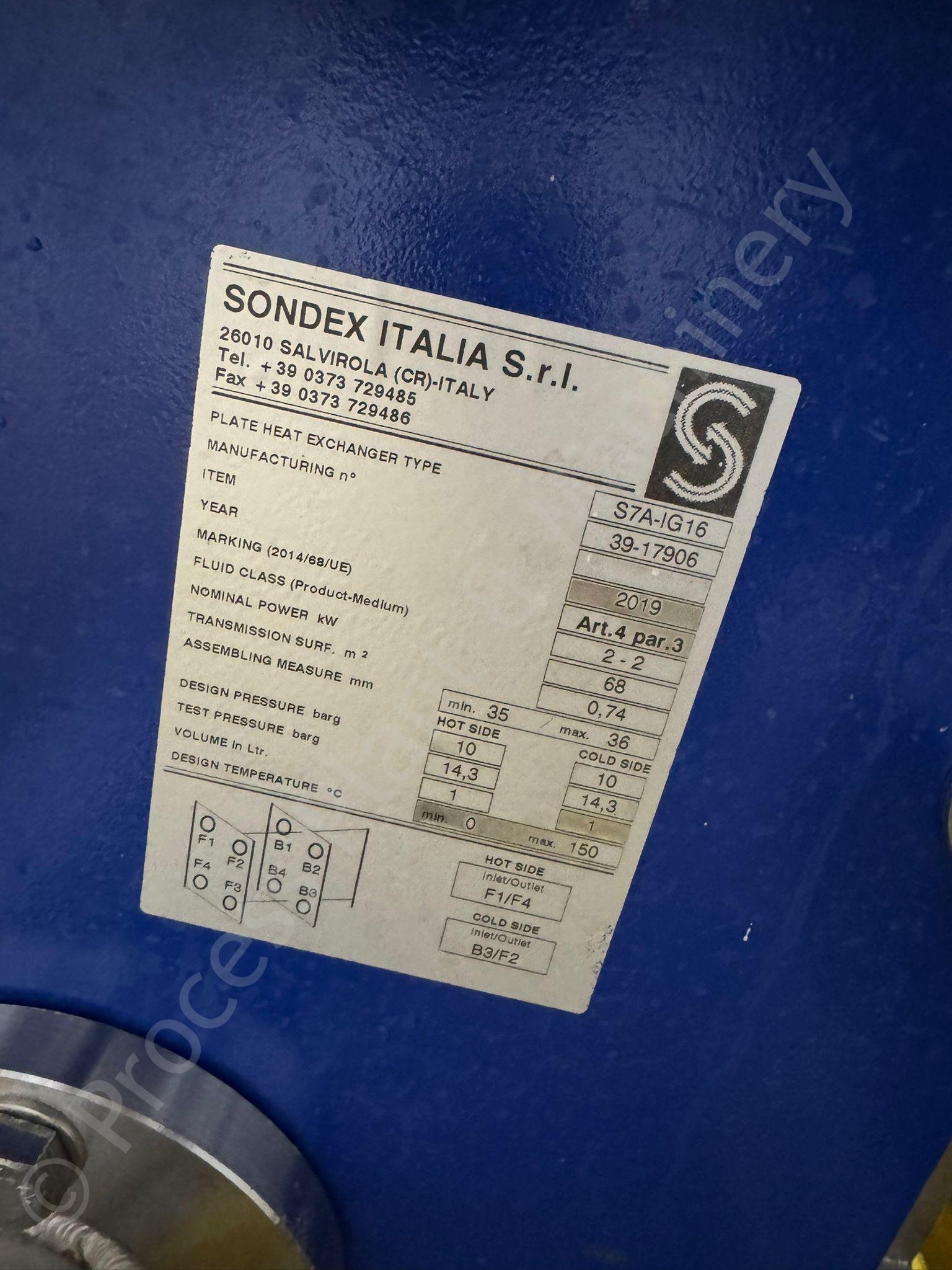

Heating: 1x Sondex S7A-IG16 Plate Heat Exchanger

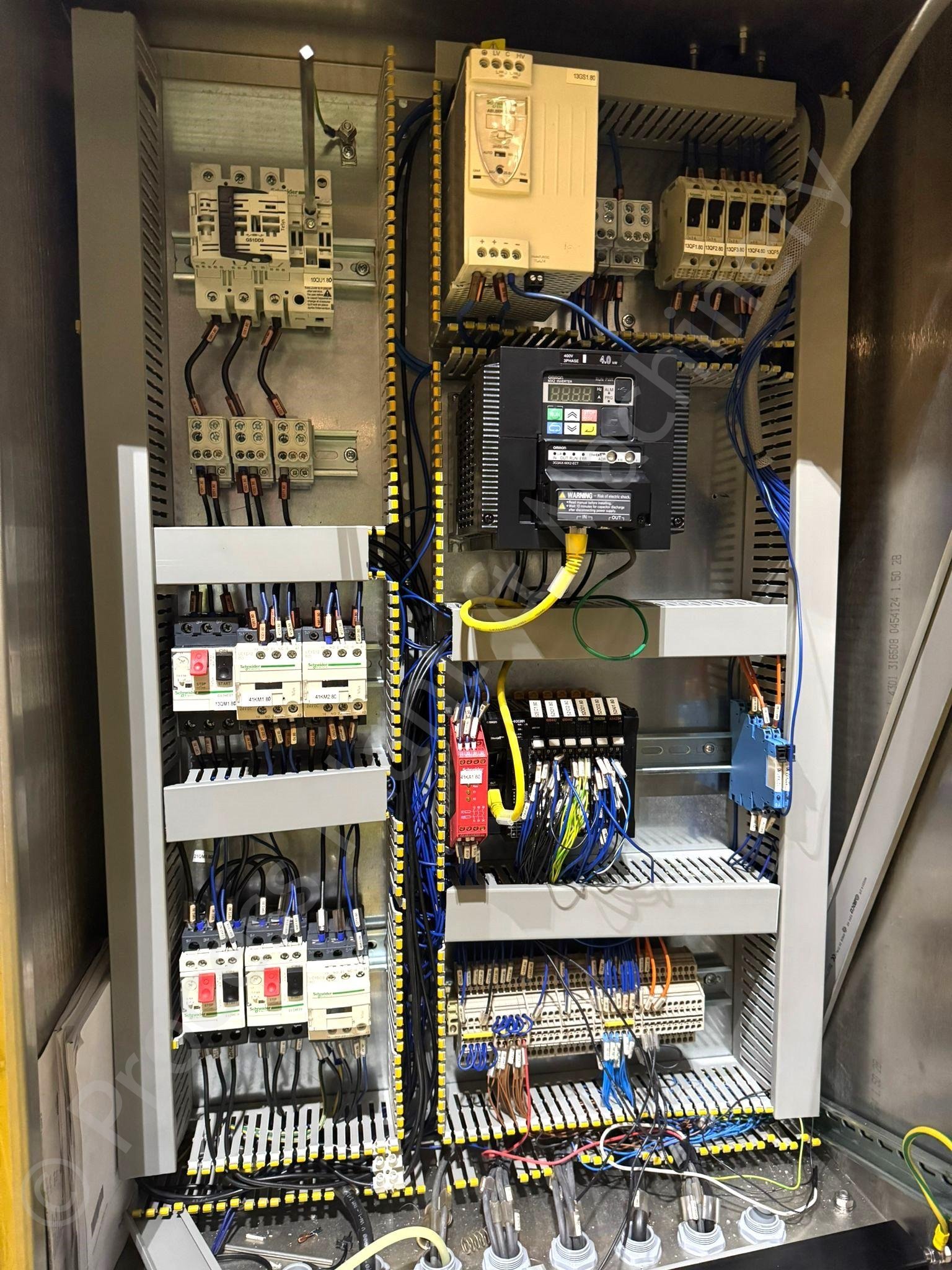

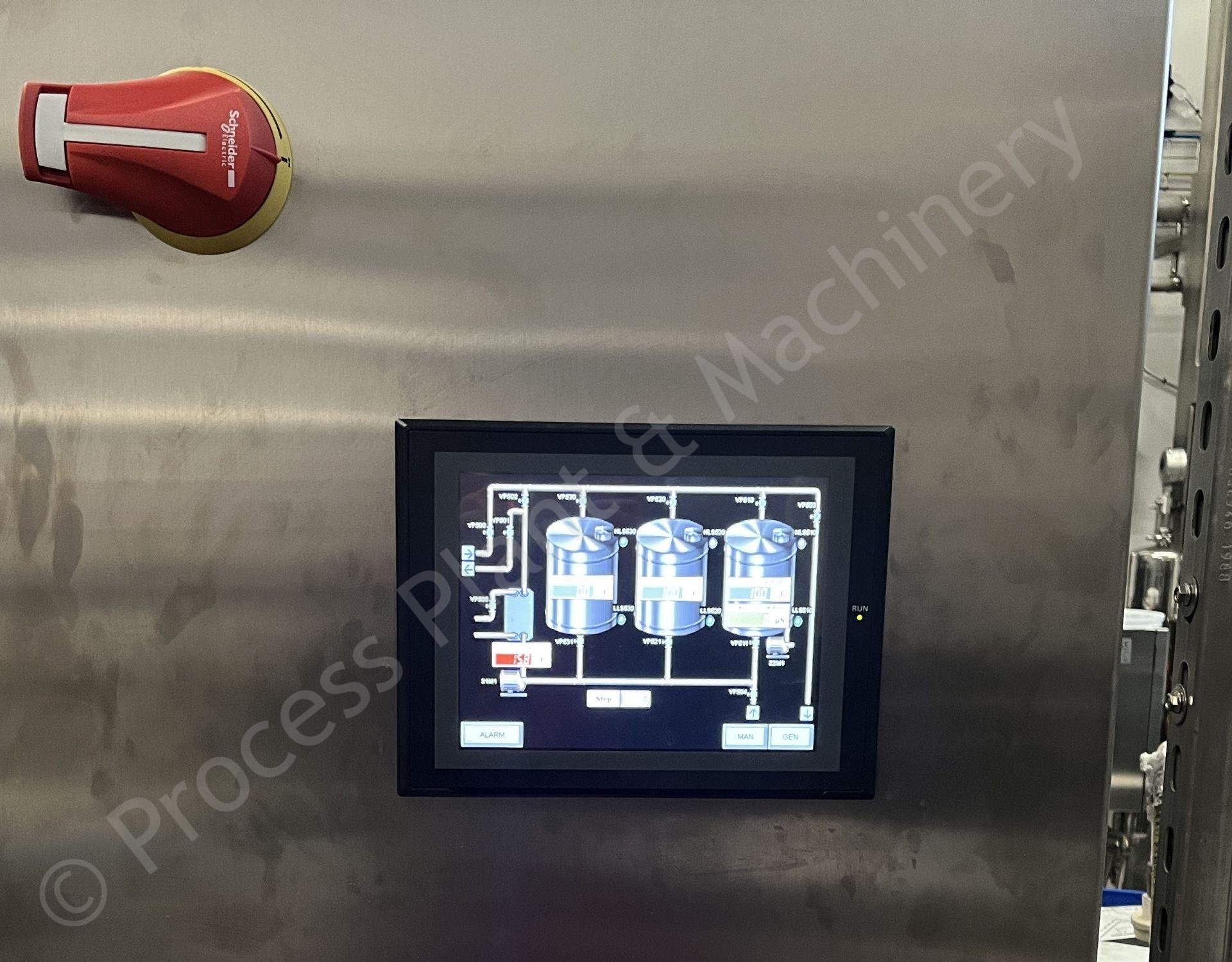

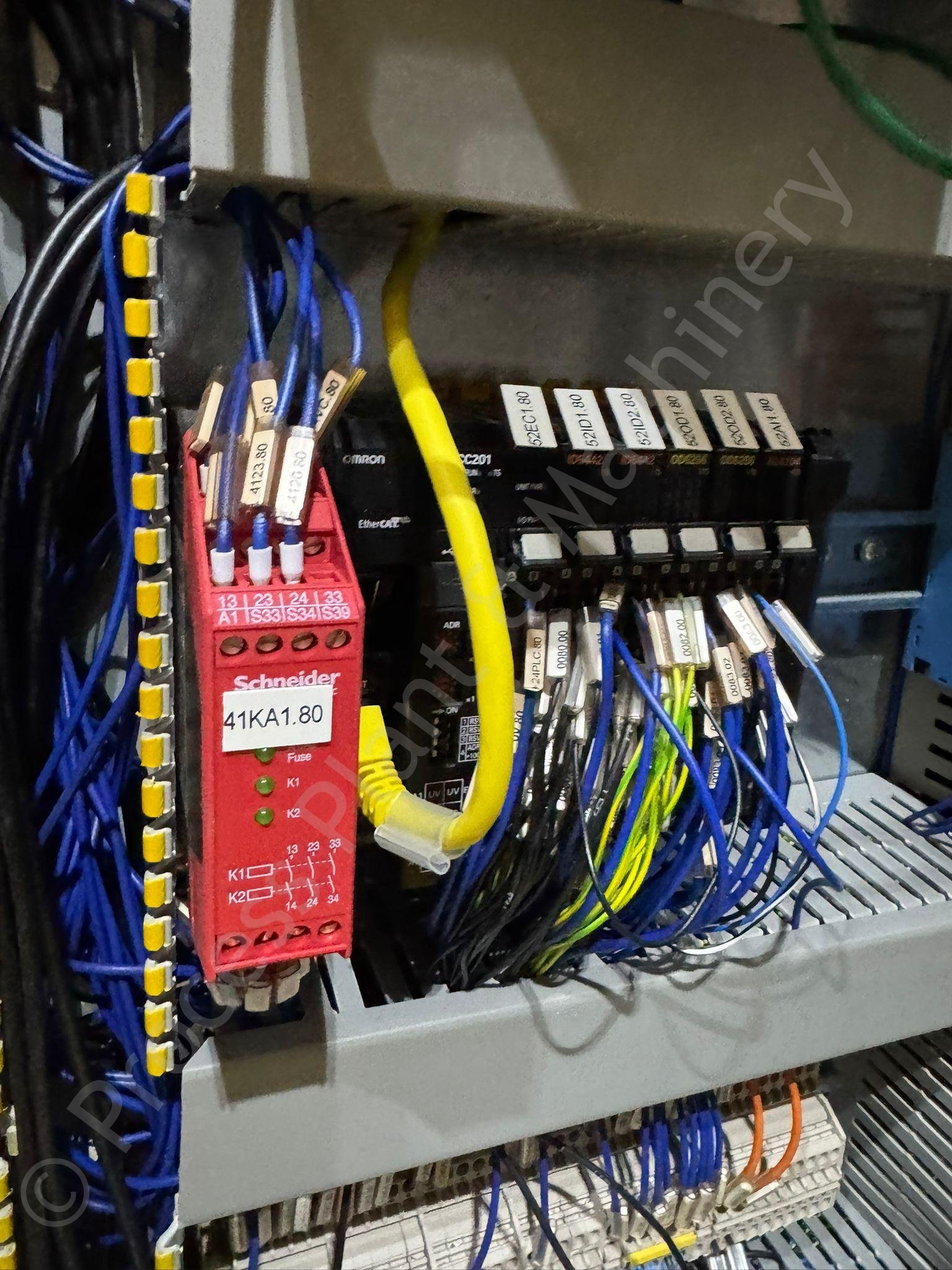

Controls: Automated Control Panel with Schneider PLC & HMI Operators Interface
Inclusions:
10x Actuated B-fly Valves
High & Low Level Sensors on Tanks
1x E+H Conductivity Sensor
Steam Valves
Dosing Pump
1.5 inch S/S Pipework
Fully Skid Mounted
Overall Dimensions (L x W x H): 4600mm x 1300mm x 2200mm
Availability: Immediate
Condition: Used, Excellent
Location: Lockerbie, Scotland
